LPOF

TJ 84-170 kV

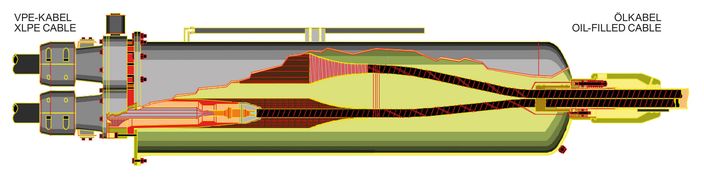

Transition joint for single/three-core LPOF – XLPE cable
Transition joint for single/three-core LPOF – XLPE cable

Product Information

Further product data, downloads and certificates

Product Information
Downloads

Product Information

LPOF Max. cross section: 800 mm²
Max. cross section: 1000 mm²
Core insulations: 83.5 mm
Max. dimensions (Ø x L): 3400 x 700 (mm)
Core type: Single-Core, Three-Core
Operating voltage Ur: 84, 170 kV
DIN norms: IEC 60141-1 SS 424 14 17 IEC 60840
LPOF Max. cross section: 800 mm²
Max. cross section: 1000 mm²
Core insulations: 83.5 mm
Max. dimensions (Ø x L): 3400 x 700 (mm)
Core type: Single-Core, Three-Core
Operating voltage Ur: 84, 170 kV
DIN norms: IEC 60141-1 SS 424 14 17 IEC 60840

Downloads

TJ 84 -​ 170 kV
