1 kV cables

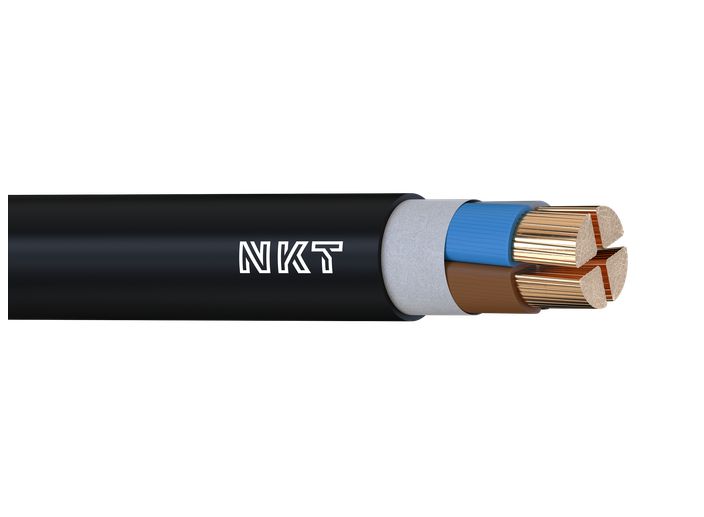

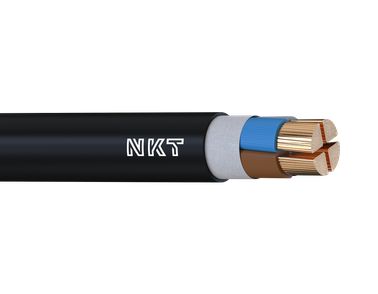

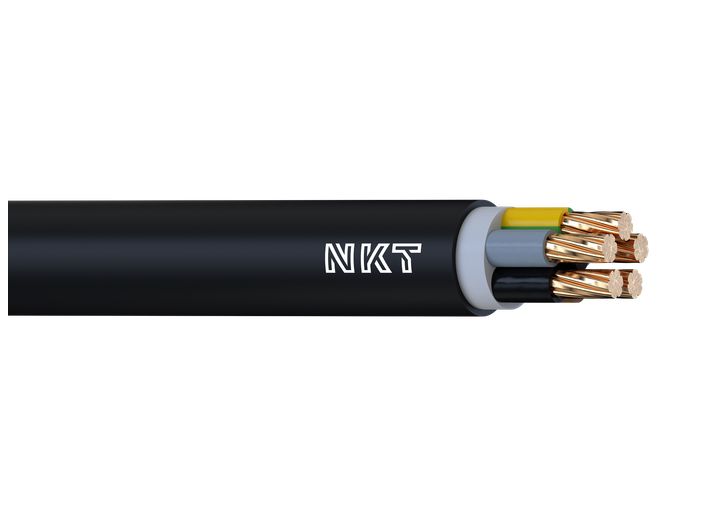

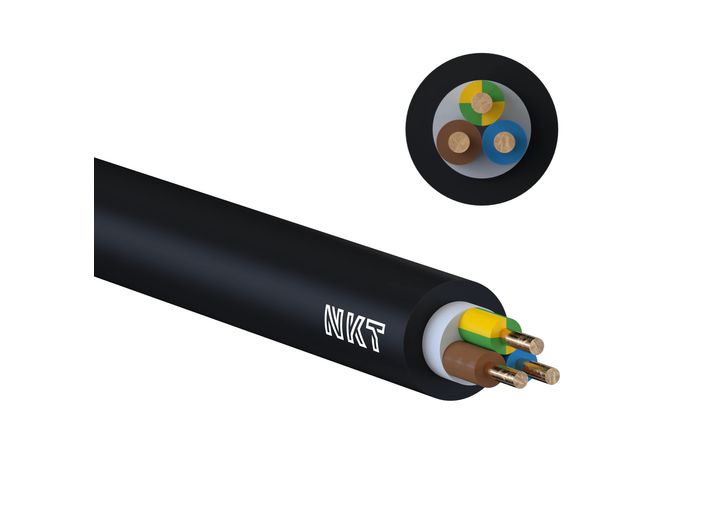

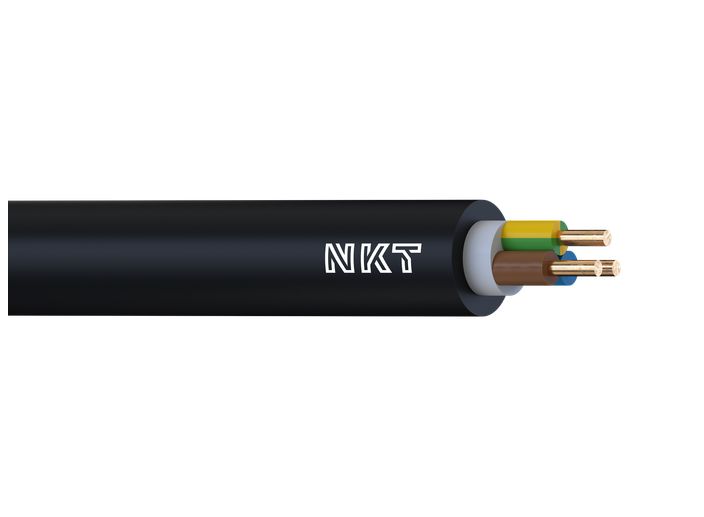

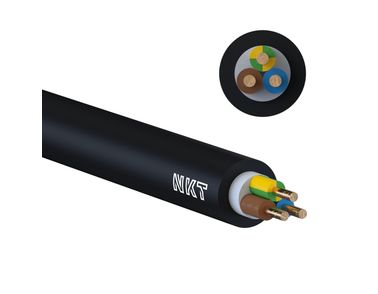

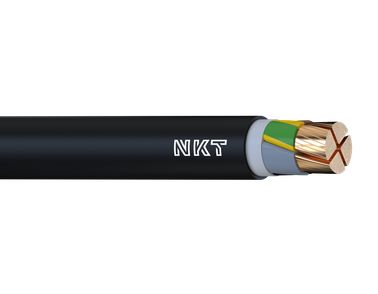

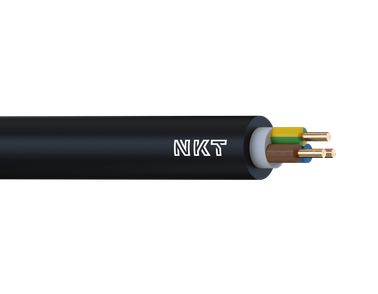

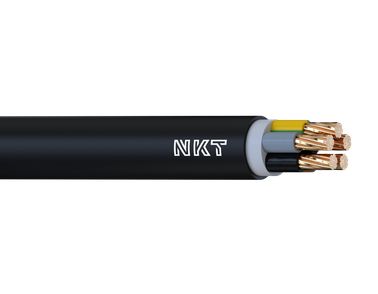

YKY 0,6/1 kV
YKY is a premium power cable for fixed installations, providing exceptional performance and reliability both indoors and outdoors.
Key features:
· Voltage: 0.6/1 kV
· Temperature range: -35°C to +70°C (max. conductor temperature: +70°C, in case of short circuit: +160°C for ≤300 mm², +140°C for >300 mm²)
· Min. laying temperature: -5°C
· Compatibility: IEC 60502-1, PN-EN 60332-1-2, RoHS, REACH
Application:
Ideal for permanent indoor and outdoor power installations, directly in soil and concrete.
Construction:
· Conductor: Copper class 1
· Insulation: PVC
· Outer sheath: Black PVC
Technical specifications:
· Cross-section range (1÷5)x(1.5÷240) mm2
· Insulation thickness: from 0.8 mm to 2.8 mm
· Outer sheath thickness: from 1.4 mm to 2.9 mm
· Outer diameter: from 5.8 mm to 57 mm
· Cable weight: from 50 kg/km to 10699 kg/km
Upgrade your installations with YKY cables for the highest quality and performance. Available below: data sheet (including current carrying capacity of YKY cables), DoP declaration, CE declaration, EPD environmental declaration, certificate.
