Building wires

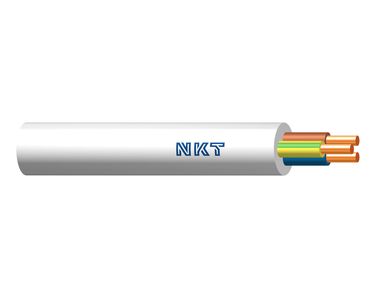

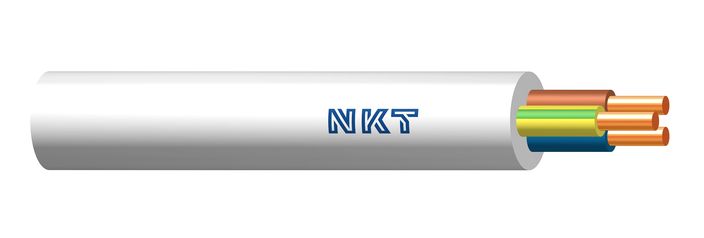

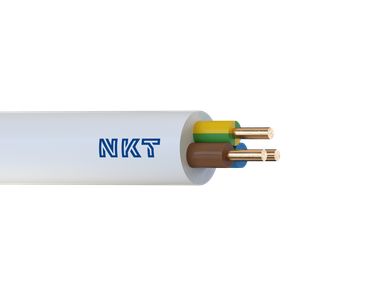

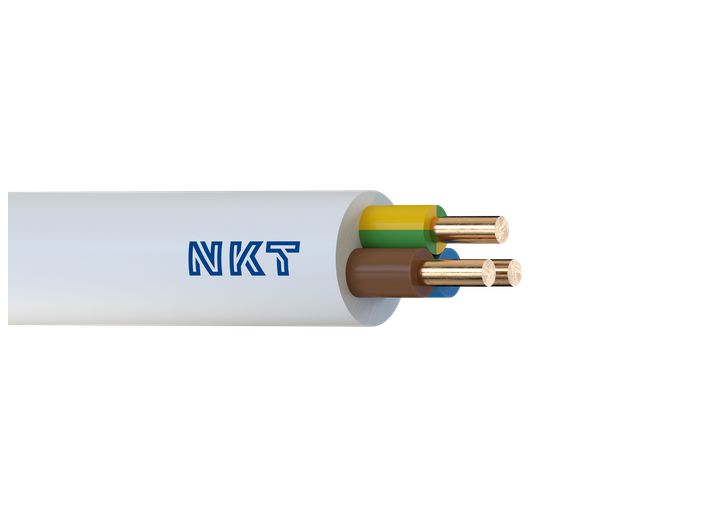

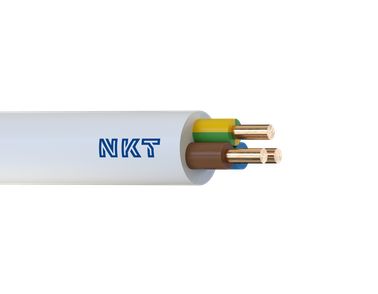

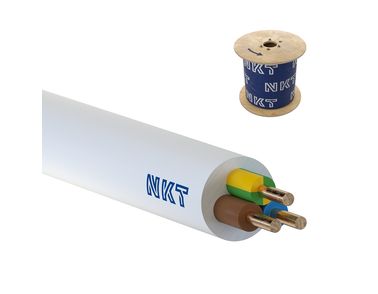

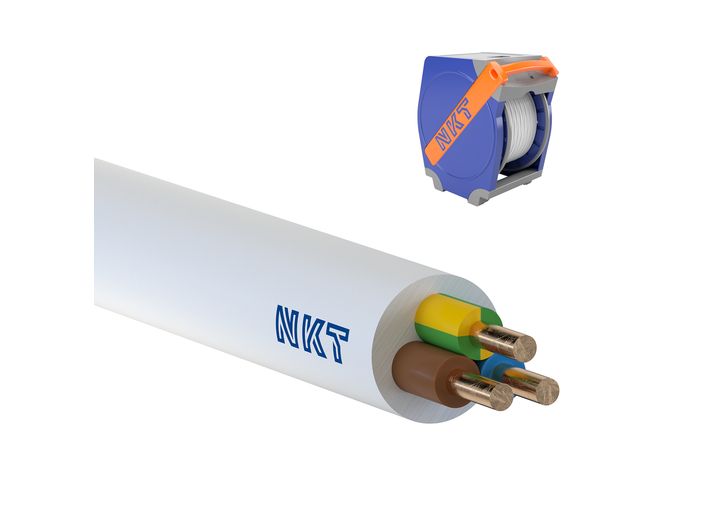

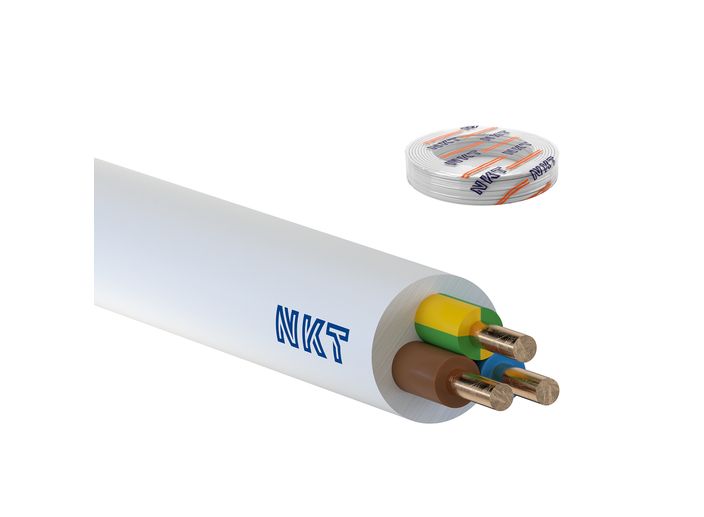

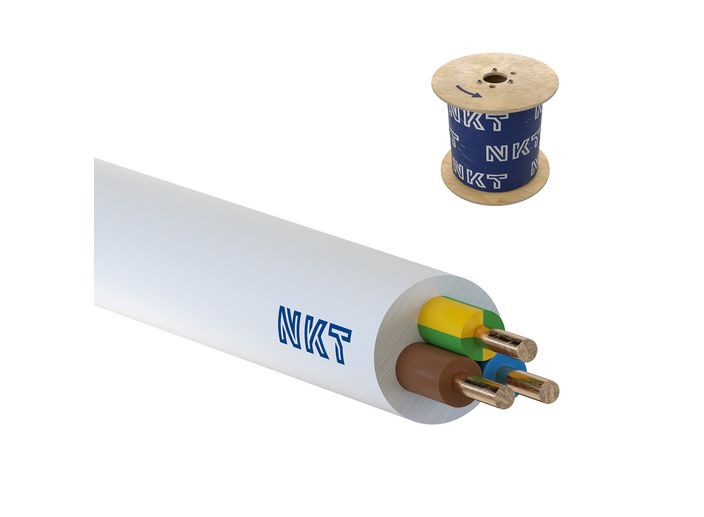

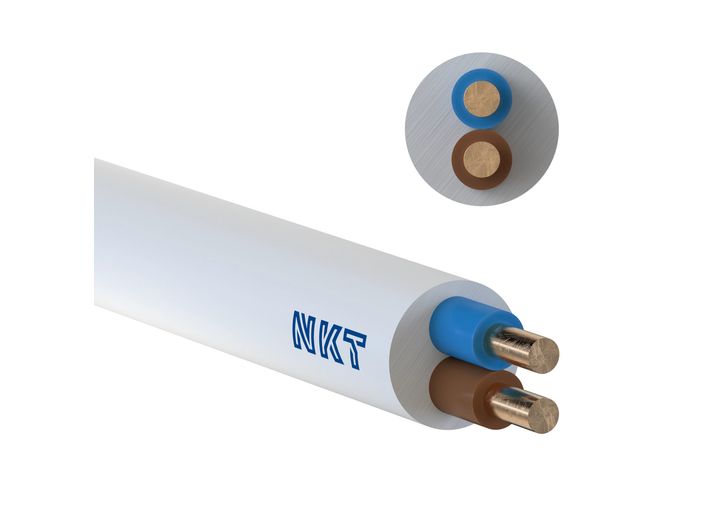

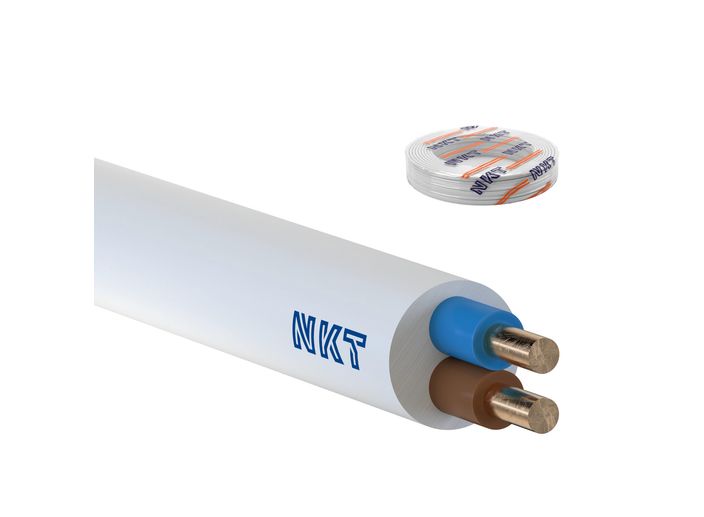

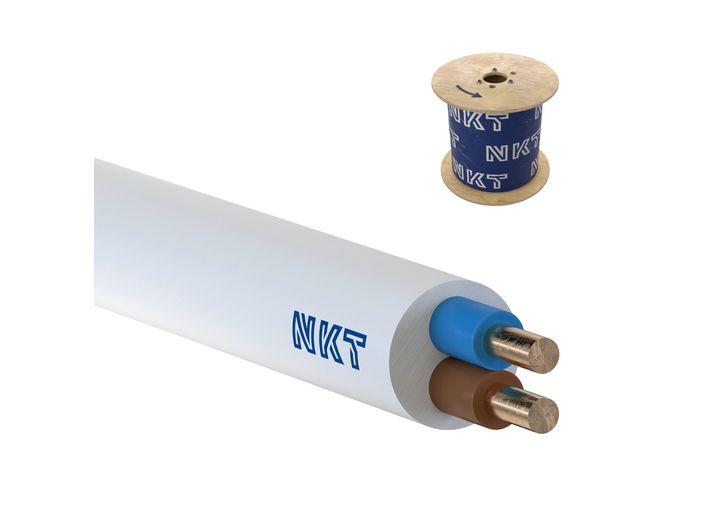

YDY 450/750 V

YDY 450/750 V is the best choice for fixed installations, offering exceptional reliability and fast installation. The vacuum extruded coating allows for easy handling of the cable and fast installation.
Key features:
·       Voltage: 450/750 V
·       Temperature range: -30°C to +70°C (max. conductor temperature: +70°C, in case of short circuit: +160°C)
·       Min. laying temperature: -5°C
·       Compliance: PN-E-90068, RoHS, REACH
Application:
Ideal for fixed installations indoors under, in and on plaster. Suitable for residential, commercial and industrial projects.

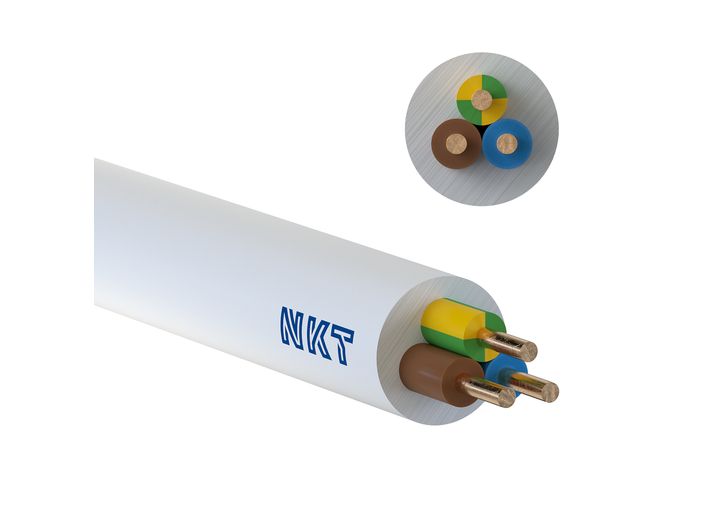

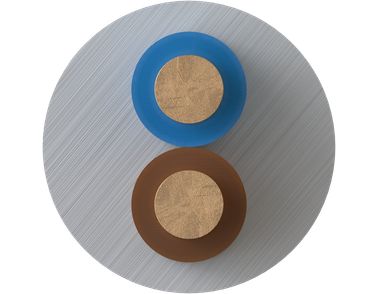

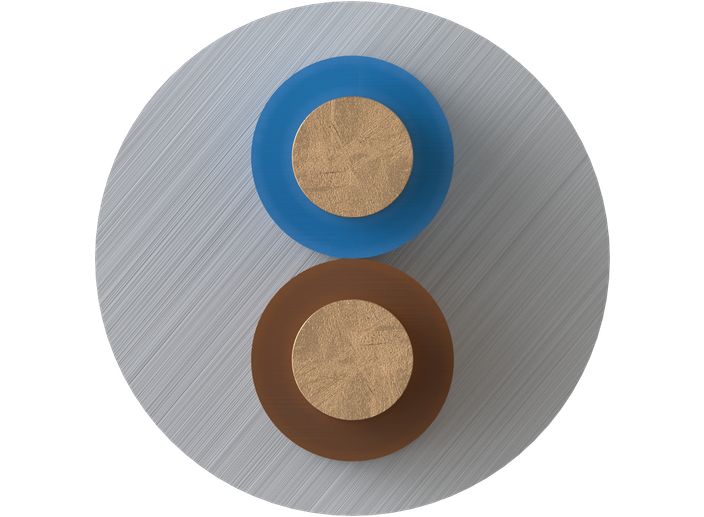

Construction:
·       Conductor: Copper class 1
·       Insulation: PVC
·       Outer sheath: White PVC
Technical specifications:
·       Cross-section range (2÷5)x(1÷10) mm2
·       Insulation thickness: from 0.8 mm to 1.1 mm
·       Outer sheath thickness: from 1.2 mm to 1.3 mm
·       Outer diameter: from 7.6 mm to 17.7 mm
·       Cable weight: from 83 kg/km to 725 kg/km
Upgrade your installations with YDY 450/750 V cables for the highest quality and performance. Available below: data sheet, DoP declaration, CE declaration, EPD environmental declaration, certificate.
