Telecom energy cables

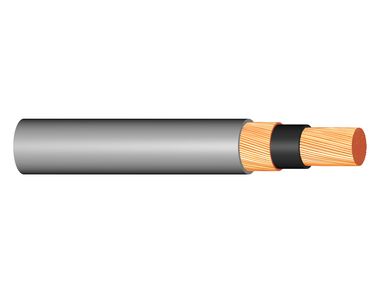

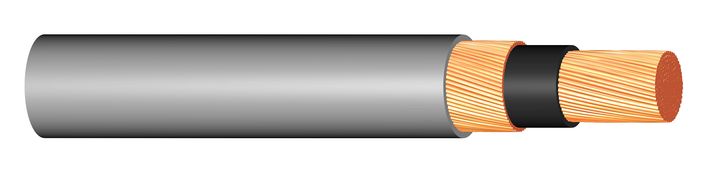

RLCL Coax
Coaxial design gives very low inductance and magnetic field for specific applications. Halogen free, flame retardant coaxial cable for power supply to telecom equipment and automotive applications. CPR and UL listed.
1/2
Coaxial design gives very low inductance and magnetic field for specific applications. Halogen free, flame retardant coaxial cable for power supply to telecom equipment and automotive applications. CPR and UL listed.
Product Information
Further product data, downloads and certificates
Product Information
Downloads
Product Information
Material conductor: CU
Conductor size: 10AWG (6); 8AWG (10); 6AWG (16); 4AWG (25); 2AWG (35)
Material outer sheath: PE
Number of cores: 1
Core type: Single-Core
Bending radius: 5 x OD
Screen: Yes
Sunlight resistant: Yes
Shielding material: CU
Rated voltage (U0/U): 300/300 V
Max. operating Temperature: +90°C
Min. operating Temperature: -20°C
CPR fire class: Dca
Application: Power cable
Standard / Norm: UL listed
Halogen free: Yes
Cable Standard: LSZH
Insulation material: LSZH
Jacket Material: LSZH
RoHS: Yes
Downloads
- Data Sheets
