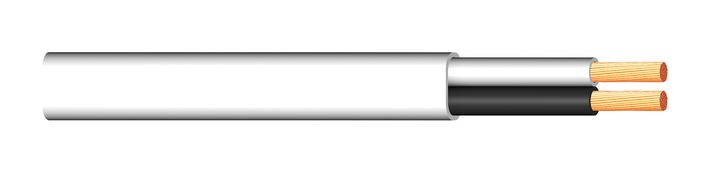

Telecom energy cables
RLH
Flexible and easy to prepare for connection to simplify installation and reduce cost on site. No shield for indoor applications. Slim design. Halogen free, flame retardant cable for battery connection and power supply to radio and other telecom equipment. CPR class Dca and UL listed. Indoor use.
Flexible and easy to prepare for connection to simplify installation and reduce cost on site. No shield for indoor applications. Slim design. Halogen free, flame retardant cable for battery connection and power supply to radio and other telecom equipment. CPR class Dca and UL listed. Indoor use.
Product Information
Further product data, downloads and certificates
Product Information
Downloads
Product Information
Material conductor: CU
Conductor size: 14AWG (2.5); 12AWG (4); 10AWG (6); 8AWG (10); 6AWG (16); 4AWG (25); 2AWG (35); 1AWG (50)
Material outer sheath: PE
Number of cores: 2
Core type: Multi core
Bending radius: 5 x OD
Rated voltage (U0/U): 600/600 V
Max. operating Temperature: +90°C
Min. operating Temperature: -20°C
CPR fire class: Dca
Application: Power cable, Battery cable
Standard / Norm: UL listed
Halogen free: Yes
Cable Standard: LSZH
Insulation material: LSZH
Jacket Material: LSZH
