Medium voltage cables

AXLJ 24 kV

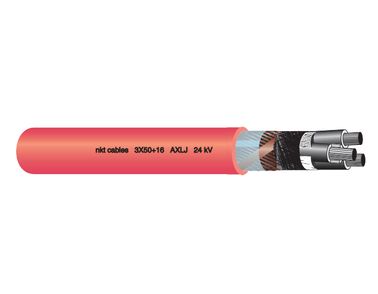

Halogenfree Power cable with circular stranded aluminium conductor. Red sheath.
Halogenfree Power cable with circular stranded aluminium conductor. Red sheath.

Product Information

Further product data, downloads and certificates

Product Data
Downloads

Product Data

Material conductor: Copper
Material insulation: PEX
Material outer sheath: PE
Number of cores: 3
Screen: Yes
Rated voltage (U0/U): 12/24 kV
Test Voltage: 50 kV
Max. operating Temperature: +90°C
Max. short circuit Temperature: +250°C
Min. Temperature when laying: -15°C
Standard / Norm: HD 620 part 6D
Halogen free: Yes
Material conductor: Copper
Material insulation: PEX
Material outer sheath: PE
Number of cores: 3
Screen: Yes
Rated voltage (U0/U): 12/24 kV
Test Voltage: 50 kV
Max. operating Temperature: +90°C
Max. short circuit Temperature: +250°C
Min. Temperature when laying: -15°C
Standard / Norm: HD 620 part 6D
Halogen free: Yes

Downloads

AXLJ 24 kV
