SME 72.5-245 kV

Pre-moulded one-piece joint with housing outer protection
Customer service

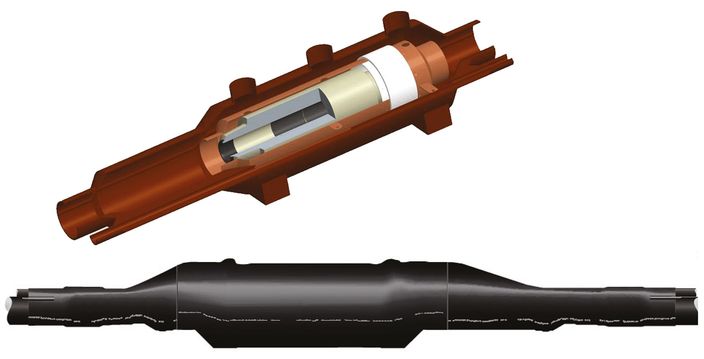

Image of SME 72.5..245 joint
Customer service
Pre-moulded one-piece joint with housing outer protection

Product Information

Further product data, downloads and certificates

Product Information
Downloads

Product Information

Max. cross section: 2500 mm²
Core insulations: 56 - 120 mm
Max. outer sheath Ø: 150 mm
Max. dimensions (Ø x L): 2300 x 370 (mm)
Max. weight: 240 - 290 kg
Max. outer sheath: 150 mm
Core type: Single-Core
Operating voltage Ur: 72, 123, 145, 170, 245 kV
Product type: Plastic Housing
Application: Straight Joint
DIN norms: IEC 60840, IEC 62067
Optional kits: Optical Fiber connection set
Max. cross section: 2500 mm²
Core insulations: 56 - 120 mm
Max. outer sheath Ø: 150 mm
Max. dimensions (Ø x L): 2300 x 370 (mm)
Max. weight: 240 - 290 kg
Max. outer sheath: 150 mm
Core type: Single-Core
Operating voltage Ur: 72, 123, 145, 170, 245 kV
Product type: Plastic Housing
Application: Straight Joint
DIN norms: IEC 60840, IEC 62067
Optional kits: Optical Fiber connection set

Downloads

  • Data Sheets

SME 72.​5 -​ 245 kV

EN
pdf111 kB
