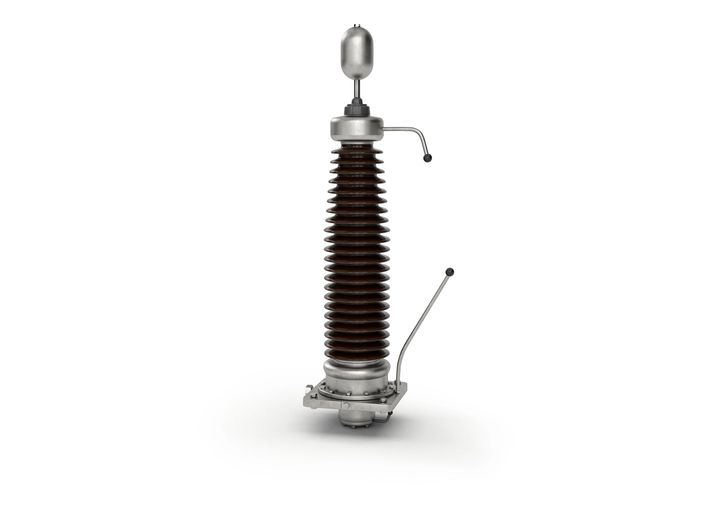

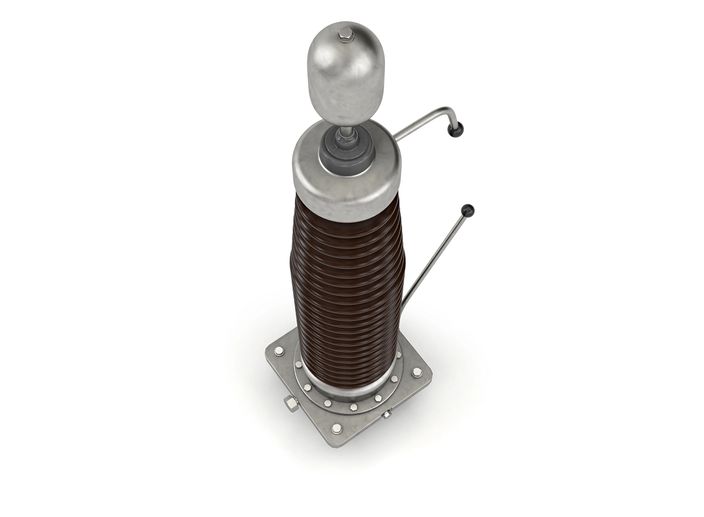

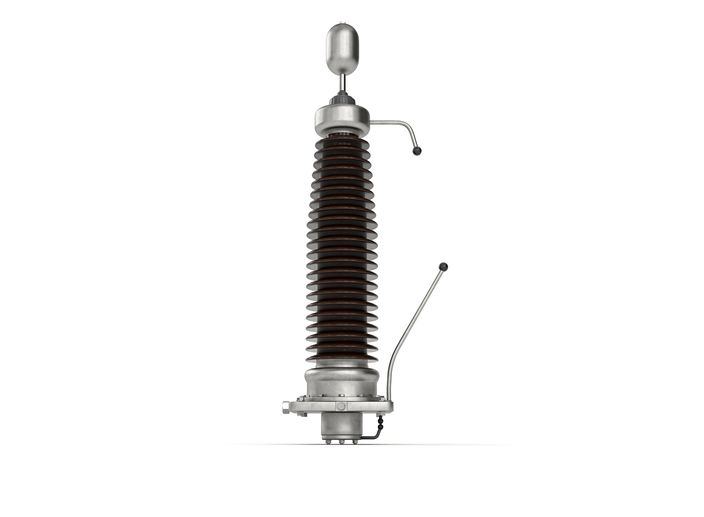

XLPE Cable Accessories
FEV 72.5-550 kV

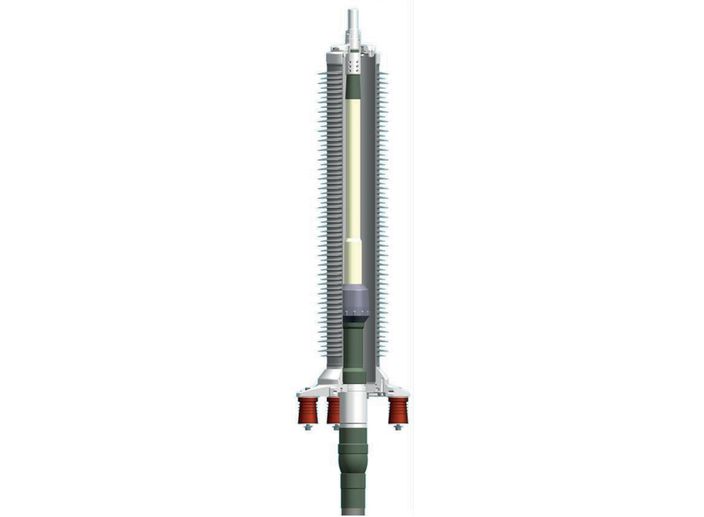

Fluid-filled outdoor termination for gas insulated switchgear
Fluid-filled outdoor termination for gas insulated switchgear
Product Information
Further product data, downloads and certificates
Product Information
Downloads
Product Information
Max. cross section: 2500 mm²
Core insulations: 97 - 140 mm
Termination length: 4980 mm
Max. outer sheath Ø: 165 mm
Max. weight: 1850 kg
Max. outer sheath: 165 mm
Operating voltage Ur: 72, 123, 145, 170, 245, 300, 420, 550 kV
Creepage path: 13200 mm
Product type: Porcelain
Application: Outdoor Termination
DIN EN 50299 norms: IEC 60840, IEC 62067, IEC 62271-209, EN 5029
IEC standard 62271-209: Fluid
Optional kits: Oil expension vessel
