XLPE Cable Accessories

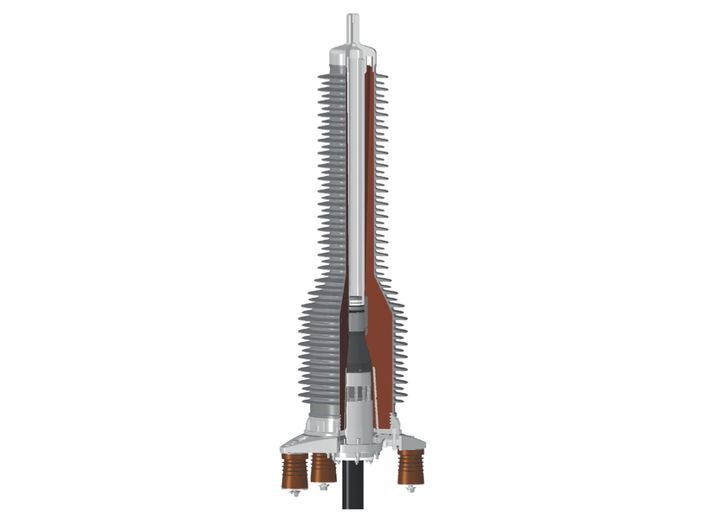

KFEV 123-170 kV
Dry plug-in outdoor termination for XLPE- and EPR-insulated cables wit AI or Cu conductor
Dry plug-in outdoor termination for XLPE- and EPR-insulated cables wit AI or Cu conductor
Product Information
Further product data, downloads and certificates
Product Information
Downloads
Product Information
Max. cross section: 2500 mm²
Core insulations: 47 - 112 mm
Termination length: 2082 mm
Max. outer sheath Ø: 120 mm
Max. weight: 232 kg
Max. outer sheath: 120 mm
Creepage path: 6300 mm
Product type: Composite Insulator
Application: Outdoor Termination
DIN EN 50299 norms: IEC 60840
IEC standard 62271-209: Dry
Optional kits: Optical Fiber connection set, Partial Discharge sensor
