XLPE Cable Accessories

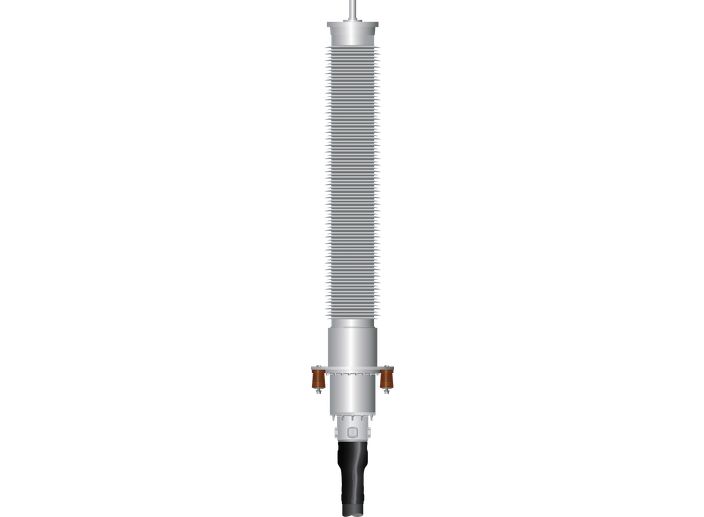

KFEV 245 kV
Dry plug-in outdoor termination for XLPE-insulated cables with AI or Cu conductor
Dry plug-in outdoor termination for XLPE-insulated cables with AI or Cu conductor
Product Information
Further product data, downloads and certificates
Product Information
Downloads
Product Information
Max. cross section: 2500 mm²
XLPE Core insulations: 76.5 - 112 mm
Termination length: 3414 mm
Max. outer sheath Ø: 120 mm
Max. weight: Dry: 500 kg
Max. outer sheath: 120 mm
Creepage path: 8430 mm
Product type: Composite Insulator
Application: Outdoor Termination
DIN EN 50299 norms: IEC 62067
IEC standard 62271-209: Dry
Optional kits: Optical Fiber connection set, Partial Discharge sensor
