XLPE Cable Accessories

THV 72.5-245 kV

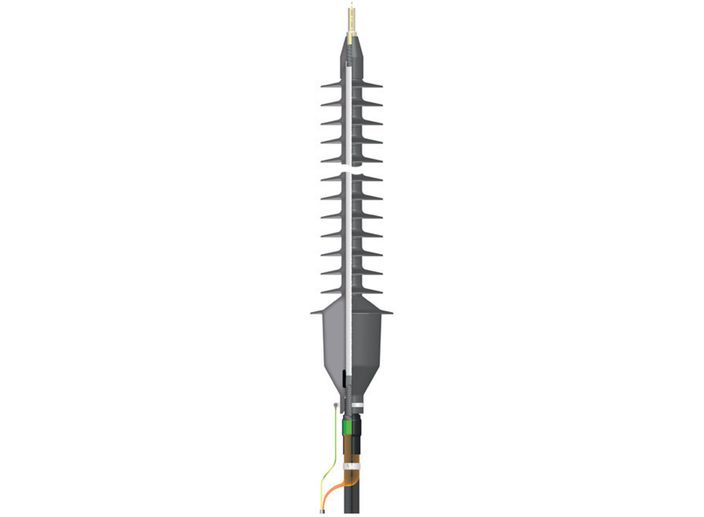

Dry flexible outdoor termination
Dry flexible outdoor termination

Product Information

Further product data, downloads and certificates

Product Information
Downloads

Product Information

Max. cross section: 1200 mm²
Core insulations: 55 - 78 mm
Termination length: 2200 mm
Max. weight: 30 kg
Operating voltage Ur: 72, 100, 123, 145, 245 kV
Creepage path: 4495 mm
Product type: Silicone Push-On
Application: Outdoor Termination
DIN EN 50299 norms: IEC 60840, IEC 62067
IEC standard 62271-209: Dry
Max. cross section: 1200 mm²
Core insulations: 55 - 78 mm
Termination length: 2200 mm
Max. weight: 30 kg
Operating voltage Ur: 72, 100, 123, 145, 245 kV
Creepage path: 4495 mm
Product type: Silicone Push-On
Application: Outdoor Termination
DIN EN 50299 norms: IEC 60840, IEC 62067
IEC standard 62271-209: Dry

Downloads

THV 72.​5 -​ 245 kV
