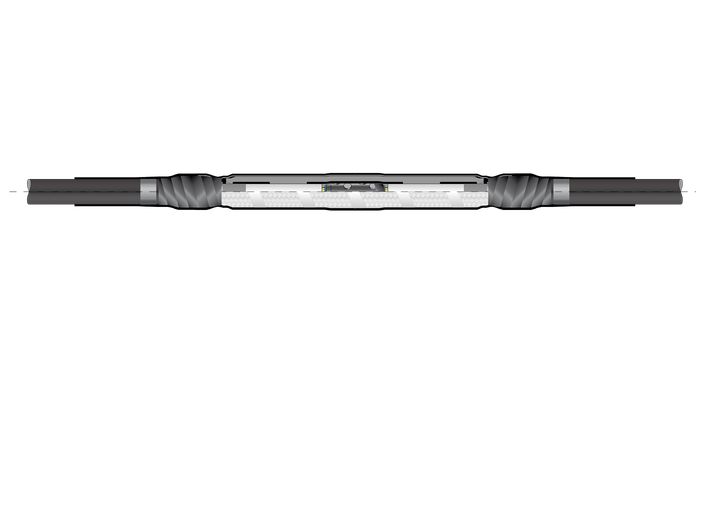

JC 24-CC Cold Shrink Straight Joint for 24 kV Cables
Key Features:
- Quick Installation: The JC 24-CC features a pre-expanded joint body made of high-quality silicone rubber on a patented spiral support pipe, ensuring a fast and straightforward installation process.
- Integrated Stress Control: Equipped with an integrated stress control system, this joint guarantees optimal performance and longevity.
- Versatile Connection Options: Compatible with various conductor connector types, including screw type and hexagonal pressing, to suit your specific needs.
- Compact Design: Only two sizes cover the application range from 95 mm² to 300 mm², making it adaptable to a wide range of cable specifications.
Technical Excellence:
- High Voltage Endurance: Withstands up to 24 kV, ensuring reliable performance under high voltage conditions.
- Robust Construction: Designed to endure partial discharges, alternating withstand voltages, and impulse withstand voltages.
- Thermal Short-Circuit Resistance: Built to handle thermal short-circuits up to 18.5 kA, ensuring safety and durability.
- Electrical Heat Cycling: Successfully passed electrical heat cycling in air/water at 32 kV for 42 days, proving its resilience in harsh environments.
Scope of Delivery:
- Joint Body: Made of durable silicone rubber.
- Conductor Connector: Ensures secure and reliable connections.
- Outer Protective Sleeve: Provides additional protection and insulation.
- Assembly Instructions: Step-by-step guide for easy installation.
- Accessories: Includes all necessary components for a complete installation.
Applications:
Ideal for use in electrical installations requiring high reliability and performance, the JC 24-CC Cold Shrink Straight Joint is perfect for both indoor and outdoor environments. Whether you're upgrading existing systems or installing new ones, this joint offers the flexibility and durability you need.
JC 24-CC Cold Shrink Straight Joint for 24 kV Cables
Key Features:
- Quick Installation: The JC 24-CC features a pre-expanded joint body made of high-quality silicone rubber on a patented spiral support pipe, ensuring a fast and straightforward installation process.
- Integrated Stress Control: Equipped with an integrated stress control system, this joint guarantees optimal performance and longevity.
- Versatile Connection Options: Compatible with various conductor connector types, including screw type and hexagonal pressing, to suit your specific needs.
- Compact Design: Only two sizes cover the application range from 95 mm² to 300 mm², making it adaptable to a wide range of cable specifications.
Technical Excellence:
- High Voltage Endurance: Withstands up to 24 kV, ensuring reliable performance under high voltage conditions.
- Robust Construction: Designed to endure partial discharges, alternating withstand voltages, and impulse withstand voltages.
- Thermal Short-Circuit Resistance: Built to handle thermal short-circuits up to 18.5 kA, ensuring safety and durability.
- Electrical Heat Cycling: Successfully passed electrical heat cycling in air/water at 32 kV for 42 days, proving its resilience in harsh environments.
Scope of Delivery:
- Joint Body: Made of durable silicone rubber.
- Conductor Connector: Ensures secure and reliable connections.
- Outer Protective Sleeve: Provides additional protection and insulation.
- Assembly Instructions: Step-by-step guide for easy installation.
- Accessories: Includes all necessary components for a complete installation.
Applications:
Ideal for use in electrical installations requiring high reliability and performance, the JC 24-CC Cold Shrink Straight Joint is perfect for both indoor and outdoor environments. Whether you're upgrading existing systems or installing new ones, this joint offers the flexibility and durability you need.
Product Information
Further product data, downloads and certificates
Product Information
Downloads
Product Information
Max. cross section: 300 mm²
Core insulations: 22.2 - 34.6 mm
Max. outer sheath Ø: 46 mm
Max. outer sheath: 46 mm
Core type: Single-Core
Product type: Cold Shrink
Application: Straight Joint
DIN norms: 61442, HD 629.1
Downloads
- Data Sheets
