Connectors

CC 24-630 M12

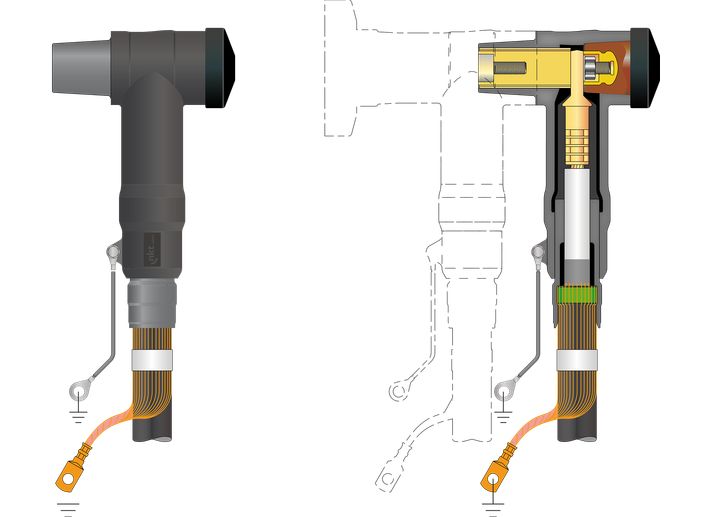

Coupling connector made of silicone rubber for connection up to 24 kV XLPE-cables to elbow branch connector type CB and CC with a M12 backside thread
Coupling connector made of silicone rubber for connection up to 24 kV XLPE-cables to elbow branch connector type CB and CC with a M12 backside thread

Product Information

Further product data, downloads and certificates

Product Information
Downloads

Product Information

Max. cross section: 300 mm²
Core insulations: 12.7 - 34.6 mm
Core type: Single-Core, Three-Core
Max. operating Voltage (Ur): 24 kV
Product type: Coupler
Application: Switch Gear, Transformer
DIN norms: HD 629.1 S2, EN 50180, EN 50181.
Max. cross section: 300 mm²
Core insulations: 12.7 - 34.6 mm
Core type: Single-Core, Three-Core
Max. operating Voltage (Ur): 24 kV
Product type: Coupler
Application: Switch Gear, Transformer
DIN norms: HD 629.1 S2, EN 50180, EN 50181.

Downloads

CC 24-​630 M12
