CC 42-2500/3

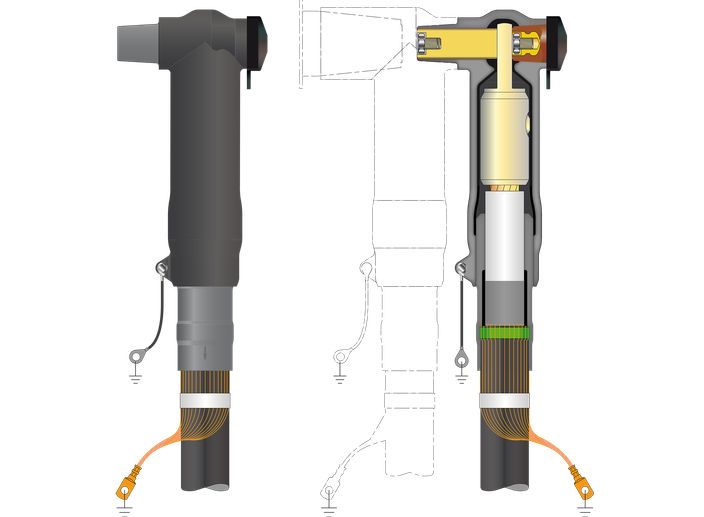

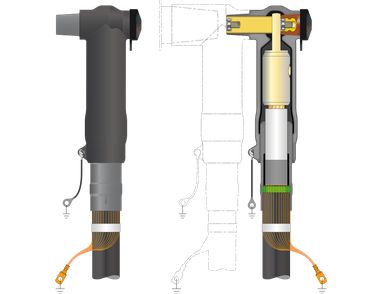

Elbow branch connector made of silicone rubber for connection up to 42 kV XLPE-cables to elbow branch connector type CB and CC with a M16 backside thread
Elbow branch connector made of silicone rubber for connection up to 42 kV XLPE-cables to elbow branch connector type CB and CC with a M16 backside thread
Product Information
Further product data, downloads and certificates
Product Information
Downloads
Product Information
Max. cross section: 1000 mm²
Core insulations: 21.2 - 57.8 mm
Core type: Single-Core, Three-Core
Max. operating Voltage (Ur): 42 kV
Product type: Coupler
Application: Switch Gear, Transformer
DIN norms: HD 629.1 S2, EN 50180, EN 50181.
