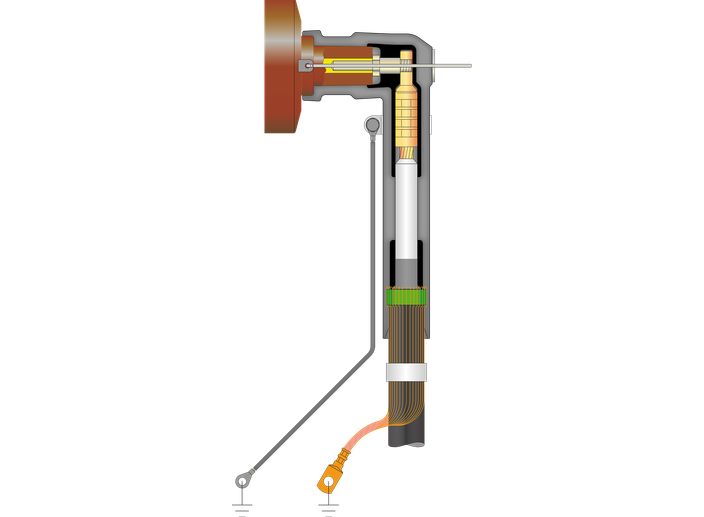

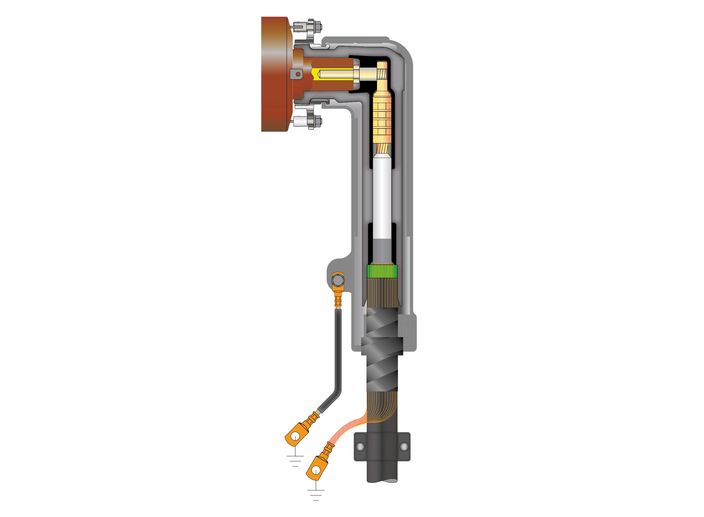

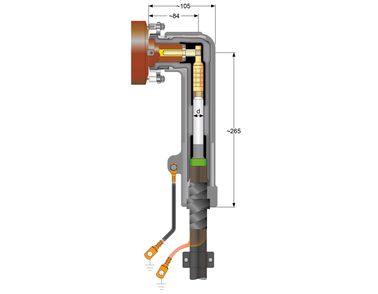

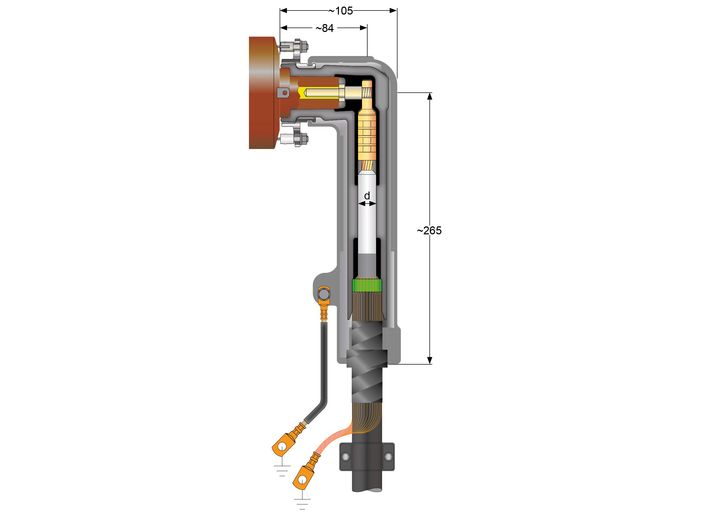

CE 24-250 Elbow Connector with Metal Housing for 24 kV Cables
Key Features:
Quick Installation: The CE 24-250 features a one-piece design made of high-quality silicone rubber, ensuring a fast and straightforward installation process.
Integrated Stress Control: Equipped with a capacitive stress control system, this connector guarantees optimal performance and longevity.
Versatile Connection Options: Compatible with various cable lug types, including screw type and crimp type, to suit your specific needs.
Mechanical Protection: Outer conductive layer and metal housing provide additional mechanical protection.
Technical Excellence:
High Voltage Endurance: Withstands up to 24 kV, ensuring reliable performance under high voltage conditions.
Robust Construction: Designed to endure partial discharges, alternating and direct withstand voltages, and impulse withstand voltages.
Thermal and Dynamic Short-Circuit Resistance: Built to handle thermal short-circuits up to 18.5 kA and dynamic short-circuits up to 47 kA, ensuring safety and durability.
Cable Sheath Testing: Allows for cable sheath testing without dismantling the connector.
Scope of Delivery:
Cable Connectors: Made of durable silicone rubber.
Metal Housing: Provides additional mechanical protection.
Conductor Cable Lugs: Ensures secure and reliable connections.
Assembly Instructions: Step-by-step guide for easy installation.
Accessories: Includes all necessary components for a complete installation.
Applications:
Ideal for use in electrical installations requiring high reliability and performance, the CE 24-250 Elbow Connector is perfect for both indoor and outdoor environments. Whether you're upgrading existing systems or installing new ones, this connector offers the flexibility and durability you need.
