Connectors

CPI 2

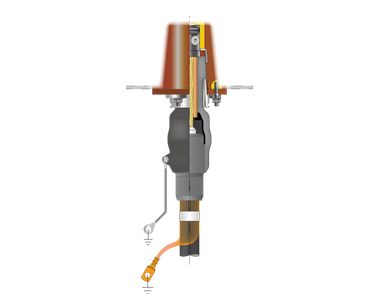

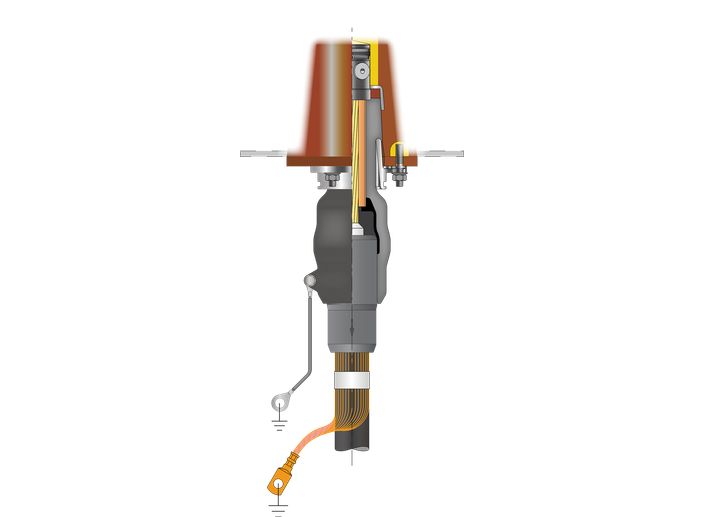

Inner cone connector made of silicone rubber for connection up to 42 kV XLPE-cables to inner cone bushing size 2 according to EN 50180 and 50181
Inner cone connector made of silicone rubber for connection up to 42 kV XLPE-cables to inner cone bushing size 2 according to EN 50180 and 50181

Product Information

Further product data, downloads and certificates

Product Information
Downloads

Product Information

Max. cross section: 400 mm²
Core insulations: 12.7 - 44 mm
Core type: Single-Core, Three-Core
Max. operating Voltage (Ur): 42 kV
Product type: Inner cone
Application: Switch Gear, Transformer
DIN norms: HD 629.1 S2, EN 50180, EN 50181.
Max. cross section: 400 mm²
Core insulations: 12.7 - 44 mm
Core type: Single-Core, Three-Core
Max. operating Voltage (Ur): 42 kV
Product type: Inner cone
Application: Switch Gear, Transformer
DIN norms: HD 629.1 S2, EN 50180, EN 50181.
