Connectors

CPI 3 XL

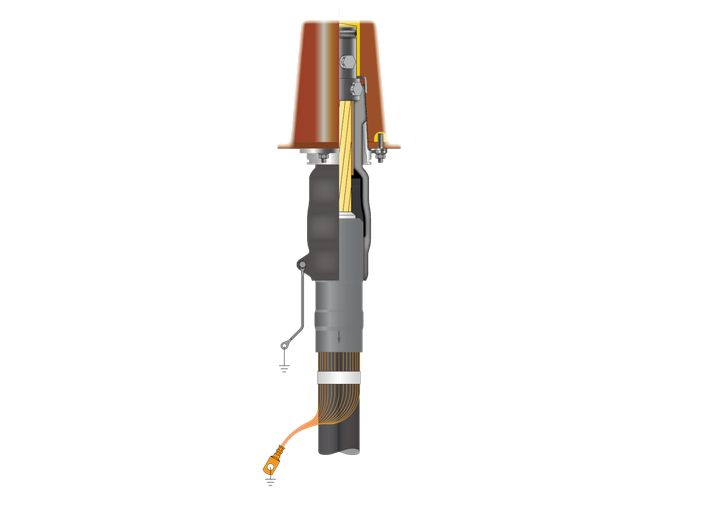

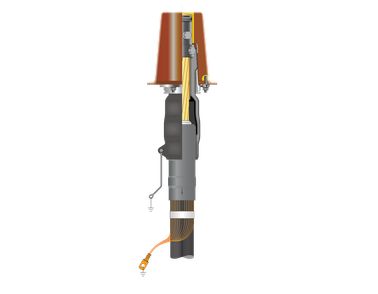

CPI 3 XL is a screened inner cone cable connector made of silicone rubber for connection with cables with large cross sections to switchgear (RMU) and transformers up to 42 kV with bushings size 3 according to EN 50180/50181.
CPI 3 XL is a screened inner cone cable connector made of silicone rubber for connection with cables with large cross sections to switchgear (RMU) and transformers up to 42 kV with bushings size 3 according to EN 50180/50181.

Product Information

Further product data, downloads and certificates

Product Information
Downloads

Product Information

Max. cross section: 1000 mm²
Core insulations: 34 - 57.8 mm
Max. operating Voltage (Ur): 42 kV
Product type: Inner cone
Application: Switch Gear, Transformer
DIN norms: HD 629.1 S2, EN 50180, EN 50181.
Max. cross section: 1000 mm²
Core insulations: 34 - 57.8 mm
Max. operating Voltage (Ur): 42 kV
Product type: Inner cone
Application: Switch Gear, Transformer
DIN norms: HD 629.1 S2, EN 50180, EN 50181.
