CSE-A 12-42 kV, 630 A

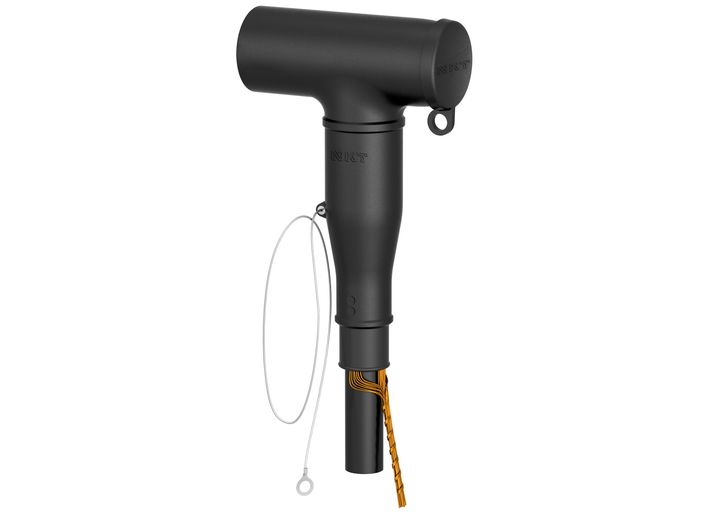

Elbow connector made of EPDM for XLPE and EPR-insulated 1- or 3-core cables with Al or Cu for 12–42 kV. For in- and outdoor applications. Fits outercone bushings type C1 and C2 (630/1250 A) according to EN 50181.
Elbow connector made of EPDM for XLPE and EPR-insulated 1- or 3-core cables with Al or Cu for 12–42 kV. For in- and outdoor applications. Fits outercone bushings type C1 and C2 (630/1250 A) according to EN 50181.
Product Information
Further product data, downloads and certificates
Product Information
Downloads
Product Information
Max. cross section: 630 mm²
Core insulations: 13 - 55 mm
Core type: Single-Core, Three-Core
Max. operating Voltage (Ur): 42 kV
Product type: Branch
Application: Outdoor Termination, Indoor Termination
DIN norms: EN 50181., HD 629.1 S2
