CSEP-A 12-42 kV

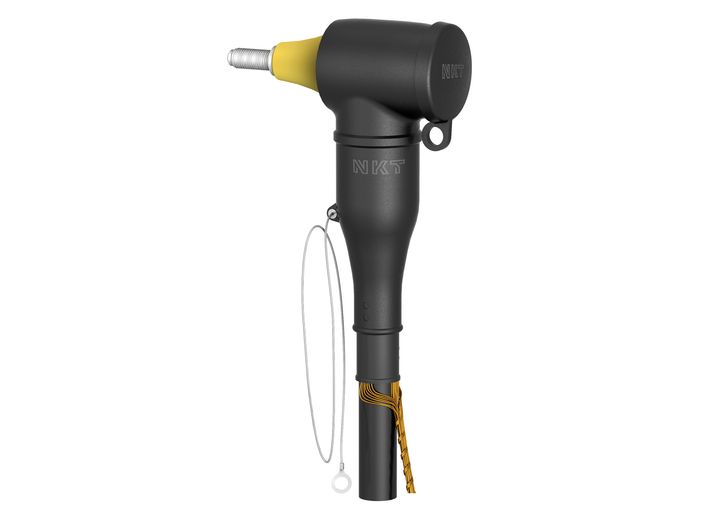

Elbow branch connector made of EPDM for XLPE and EPR-insulated 1- or 3-core cables with Al or Cu conductors for 12–42 kV. For in- and outdoor applications. For connection in parallel with CSE-A 630 12-42 kV .
Elbow branch connector made of EPDM for XLPE and EPR-insulated 1- or 3-core cables with Al or Cu conductors for 12–42 kV. For in- and outdoor applications. For connection in parallel with CSE-A 630 12-42 kV .
Product Information
Further product data, downloads and certificates
Product Information
Downloads
Product Information
Max. cross section: 630 mm²
Core insulations: 13 - 55 mm
Core type: Single-Core, Three-Core
Max. operating Voltage (Ur): 42 kV
Product type: Angle
Application: Switch Gear, Transformer
DIN norms: HD 629.1 S2
