CVT24 / CVT24-L
Precision voltage measurement for modern power networks
The CVT 24 and CVT 24-L voltage sensors are high-precision, compact devices designed for accurate voltage measurement in medium-voltage (MV) cable systems. Built to meet the latest international standards, these sensors are ideal for smart grid applications, condition monitoring, and protection systems in both onshore and offshore environments.
Key features
- Accurate voltage sensing Designed to deliver precise voltage measurements with a rated transformation ratio of 3.25/√3, the CVT 24 series supports both 0.5 and 3P accuracy classes, ensuring reliable data for metering and protection.

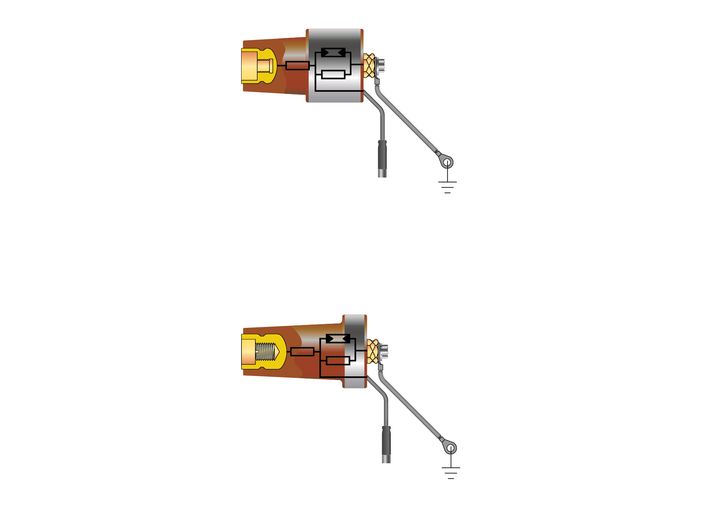

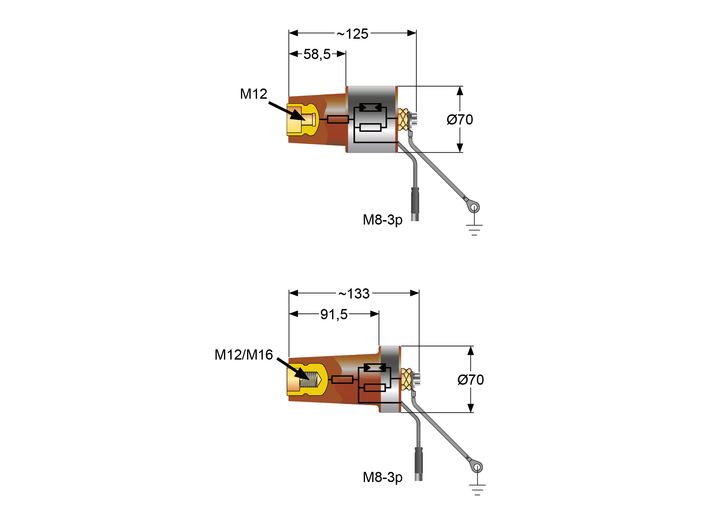

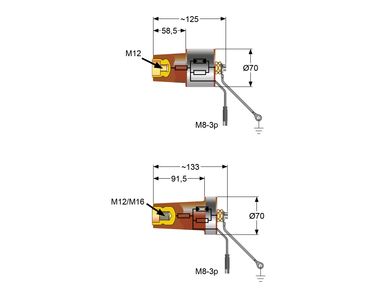

- Compact and lightweight design With a body length of approximately 125 mm (CVT 24) and 133 mm (CVT 24-L), and a weight of just 0.8 kg, these sensors are easy to integrate into compact switchgear and cable systems.
- Robust construction Made from brass and epoxy (RAL 8015), the sensors are built to withstand harsh environmental conditions, offering long-term durability and electrical insulation.
- Flexible installation options The CVT 24 and CVT 24-L are equipped with threaded bolt connectors (M8-3p) and support M12 and M16 mounting via thread reduction, allowing for versatile installation in various configurations.
Technical excellence
- Voltage ratings
- Rated voltage: 20 kV
- Highest voltage for equipment: 24 kV
- AC withstand voltage (1 min): 50 kV
- Lightning impulse withstand voltage: 125 kV
- Partial discharge: < 20 pC at 16.6 kV, < 50 pC at 28.8 kV
- Electrical performance
- Rated frequency: 50/60 Hz
- Rated voltage factor: 1.9/8 h
- Rated burden: 2 MΩ / 50 pF
- Output cable: 3.7 m with open end
- Connector: M8-3p
- Compliance Fully tested and certified according to IEC 60044-7, IEC 61869-11, and IEC 61869-6, ensuring compatibility with modern monitoring and protection systems.
Scope of delivery
Each CVT 24 or CVT 24-L sensor package includes:
- Voltage sensor unit
- Pre-installed output cable
- Mounting hardware
- Installation instructions
Packaged in a compact cardboard box (400 x 255 x 170 mm), each box contains three sensors, with a total weight of 3 kg.
Applications
The CVT 24 series is ideal for:
- Smart grid voltage monitoring
- Medium-voltage switchgear
- Substation automation
- Renewable energy systems
- Industrial power distribution
Whether you're upgrading existing infrastructure or deploying new systems, the CVT 24 and CVT 24-L offer the accuracy, reliability, and compact form factor needed for modern electrical networks.
1/2
Precision voltage measurement for modern power networks
The CVT 24 and CVT 24-L voltage sensors are high-precision, compact devices designed for accurate voltage measurement in medium-voltage (MV) cable systems. Built to meet the latest international standards, these sensors are ideal for smart grid applications, condition monitoring, and protection systems in both onshore and offshore environments.
Key features
- Accurate voltage sensing Designed to deliver precise voltage measurements with a rated transformation ratio of 3.25/√3, the CVT 24 series supports both 0.5 and 3P accuracy classes, ensuring reliable data for metering and protection.
- Compact and lightweight design With a body length of approximately 125 mm (CVT 24) and 133 mm (CVT 24-L), and a weight of just 0.8 kg, these sensors are easy to integrate into compact switchgear and cable systems.
- Robust construction Made from brass and epoxy (RAL 8015), the sensors are built to withstand harsh environmental conditions, offering long-term durability and electrical insulation.
- Flexible installation options The CVT 24 and CVT 24-L are equipped with threaded bolt connectors (M8-3p) and support M12 and M16 mounting via thread reduction, allowing for versatile installation in various configurations.
Technical excellence
- Voltage ratings
- Rated voltage: 20 kV
- Highest voltage for equipment: 24 kV
- AC withstand voltage (1 min): 50 kV
- Lightning impulse withstand voltage: 125 kV
- Partial discharge: < 20 pC at 16.6 kV, < 50 pC at 28.8 kV
- Electrical performance
- Rated frequency: 50/60 Hz
- Rated voltage factor: 1.9/8 h
- Rated burden: 2 MΩ / 50 pF
- Output cable: 3.7 m with open end
- Connector: M8-3p
- Compliance Fully tested and certified according to IEC 60044-7, IEC 61869-11, and IEC 61869-6, ensuring compatibility with modern monitoring and protection systems.
Scope of delivery
Each CVT 24 or CVT 24-L sensor package includes:
- Voltage sensor unit
- Pre-installed output cable
- Mounting hardware
- Installation instructions
Packaged in a compact cardboard box (400 x 255 x 170 mm), each box contains three sensors, with a total weight of 3 kg.
Applications
The CVT 24 series is ideal for:
- Smart grid voltage monitoring
- Medium-voltage switchgear
- Substation automation
- Renewable energy systems
- Industrial power distribution
Whether you're upgrading existing infrastructure or deploying new systems, the CVT 24 and CVT 24-L offer the accuracy, reliability, and compact form factor needed for modern electrical networks.
