Connectors

EASG 20/250

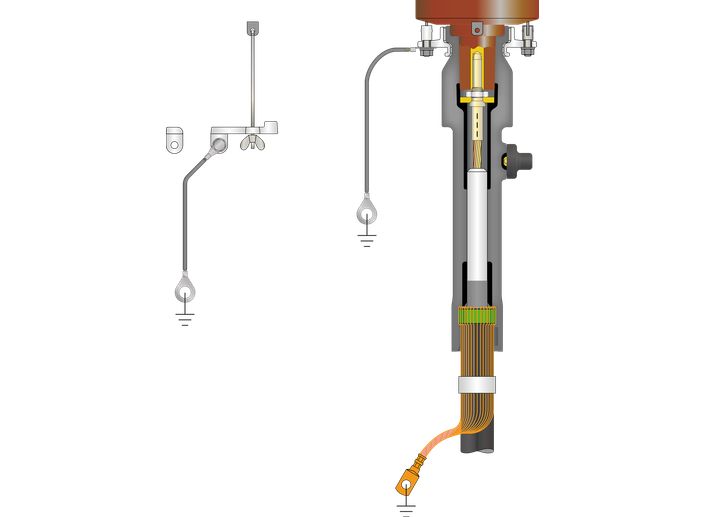

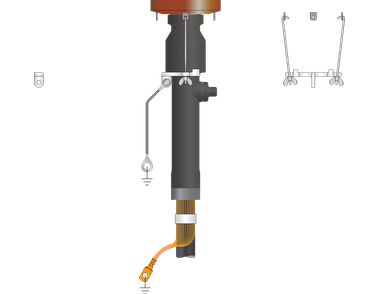

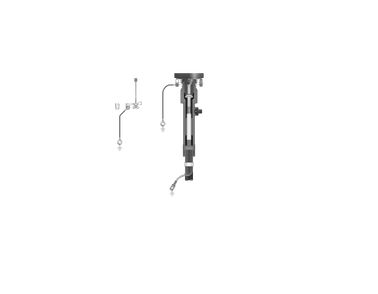

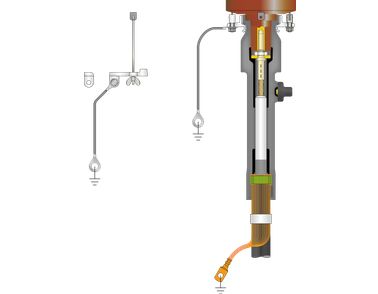

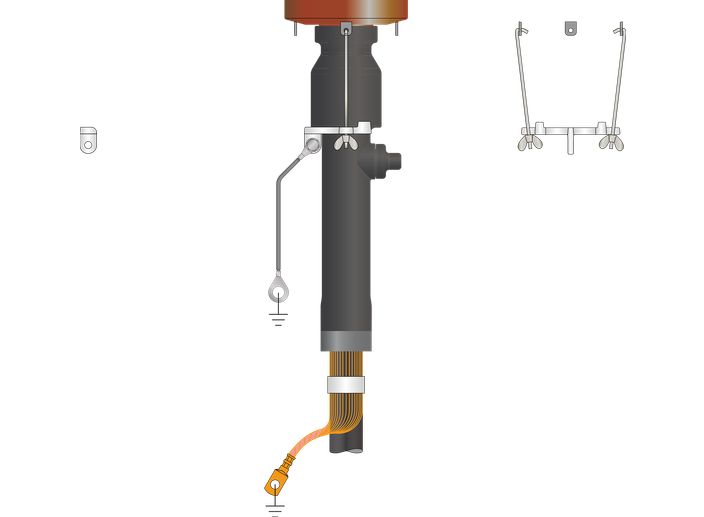

Straight connector made of silicone rubber for connection up to 24 kV XLPE-cables to outercone bushing type A (250A) according to EN 50180 and 50181
Straight connector made of silicone rubber for connection up to 24 kV XLPE-cables to outercone bushing type A (250A) according to EN 50180 and 50181

Product Information

Further product data, downloads and certificates

Product Information
Downloads

Product Information

Max. cross section: 95 mm²
Core insulations: 17 - 25 mm
Core type: Single-Core, Three-Core
Max. operating Voltage (Ur): 24 kV
Product type: Straight Connector
Application: Switch Gear, Transformer
DIN norms: EN 50180, HD 629.1 S2, EN 50181.
Max. cross section: 95 mm²
Core insulations: 17 - 25 mm
Core type: Single-Core, Three-Core
Max. operating Voltage (Ur): 24 kV
Product type: Straight Connector
Application: Switch Gear, Transformer
DIN norms: EN 50180, HD 629.1 S2, EN 50181.

Downloads

EASG 10/250, EASG 20/250
