1 kV cables

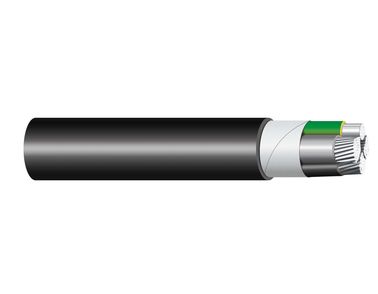

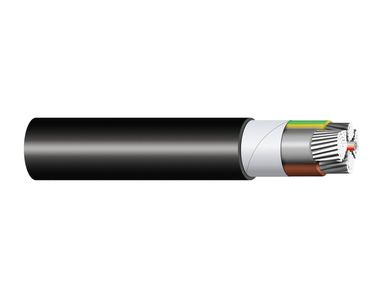

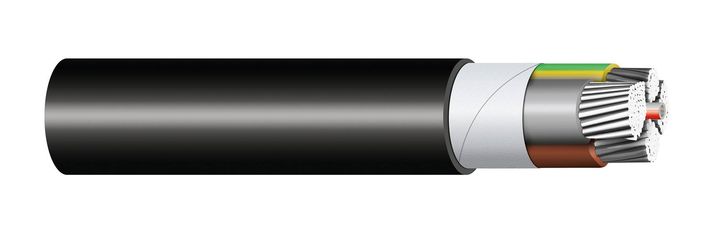

1-AYKY

The cable is designed for fixed installation, indoors and outdoors, in the ground and in concrete.
The cable is designed for fixed installation, indoors and outdoors, in the ground and in concrete.

Product Information

Further product data, downloads and certificates

Product Information
Downloads

Product Information

Material conductor: Aluminium
Material outer sheath: PVC
Core type: Multi core
Screen: No
Test Voltage: 4 kV
Max. operating Temperature: +70°C
Max. short circuit Temperature: +140°C
Min. operating Temperature: -35°C
Min. storage Temperature: -35°C
Min. Temperature when laying: -5°C
CPR fire class: Eca
Standard / Norm: PNE 347659-3
Halogen free: No
Material conductor: Aluminium
Material outer sheath: PVC
Core type: Multi core
Screen: No
Test Voltage: 4 kV
Max. operating Temperature: +70°C
Max. short circuit Temperature: +140°C
Min. operating Temperature: -35°C
Min. storage Temperature: -35°C
Min. Temperature when laying: -5°C
CPR fire class: Eca
Standard / Norm: PNE 347659-3
Halogen free: No
