Telecom energy cables

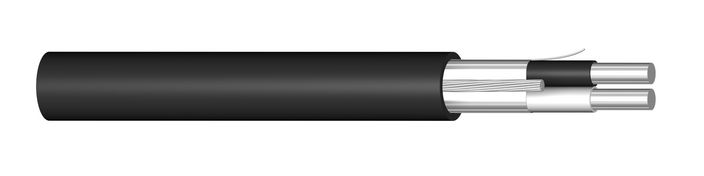

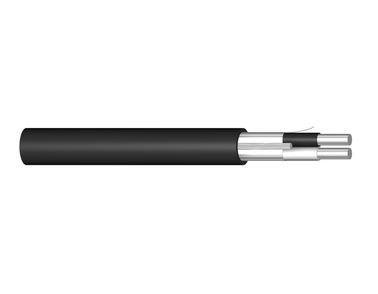

AQAQ Dual-core
Aluminium cable to minimize cost of material and weight. It still offers the same electrical performance as Cu equivalent cable. Halogen free, flame retardant and shielded aluminum cable for power supply to radio units and other telecom equipment. Sunlight resistant. Indoor and outdoor use.
1/57
Aluminium cable to minimize cost of material and weight. It still offers the same electrical performance as Cu equivalent cable. Halogen free, flame retardant and shielded aluminum cable for power supply to radio units and other telecom equipment. Sunlight resistant. Indoor and outdoor use.
Product Information
Further product data, downloads and certificates
Product Information
Downloads
Product Information
Material conductor: AL
Conductor size: 8AWG (10); 6AWG (16); 4AWG (25);
Material outer sheath: PE
Number of cores: 2
Core type: Multi core
Bending radius: 8 x OD
Screen: Yes
Sunlight resistant: Yes
Shielding material: AL
Rated voltage (U0/U): 600/600 V
Max. operating Temperature: +90°C
Min. operating Temperature: -20°C
CPR fire class: Dca
Application: Power cable
Halogen free: Yes
Cable Standard: LSZH
Insulation material: LSZH
Jacket Material: LSZH
RoHS: Yes
