Telecom energy cables

AQAQ Multi-core

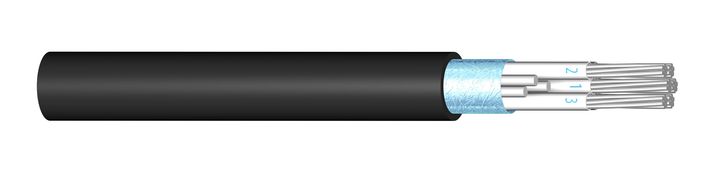

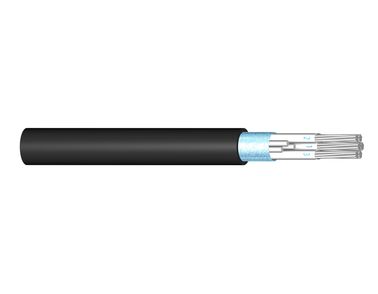

Aluminium multi-power cable to minimize number of cables, cost of material and weight. It still offers the same electrical performance as Cu equivalent cable. Halogen free, flame retardant and shielded aluminium cable with six (6) conductors to power supply several radio units and other telecom equipment. Sunlight resistant. Indoor and outdoor use.
Aluminium multi-power cable to minimize number of cables, cost of material and weight. It still offers the same electrical performance as Cu equivalent cable. Halogen free, flame retardant and shielded aluminium cable with six (6) conductors to power supply several radio units and other telecom equipment. Sunlight resistant. Indoor and outdoor use.

Product Information

Further product data, downloads and certificates

Product Data
Downloads

Product Data

Material conductor: Aluminium
Conductor size: 10; 16; 25
Material outer sheath: PE
Number of cores: 6
Core type: Multi core
Bending radius: 8 x OD
Screen: Yes
Sunlight resistant: Yes
Shielding material: Aluminium
Rated voltage (U0/U): 600/600 V
Max. operating Temperature: +90°C
Min. operating Temperature: -20°C
Application: Power cable
Material conductor: Aluminium
Conductor size: 10; 16; 25
Material outer sheath: PE
Number of cores: 6
Core type: Multi core
Bending radius: 8 x OD
Screen: Yes
Sunlight resistant: Yes
Shielding material: Aluminium
Rated voltage (U0/U): 600/600 V
Max. operating Temperature: +90°C
Min. operating Temperature: -20°C
Application: Power cable

Downloads

AQAQ Multi-​core
