Telecom energy cables

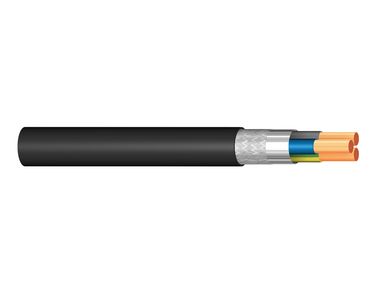

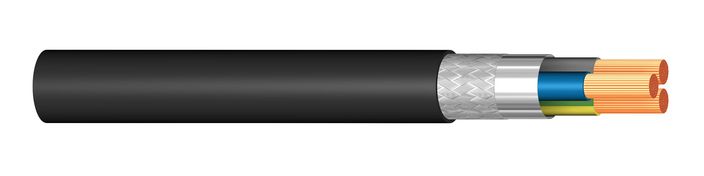

RLCL Triple-core

Flexible and easy to prepare for connection to simplify installation and reduce cost on site. Traditional braided Cu shield. UL listed. Halogen free, flame retardant and shielded cable with three (3) conductors for power supply to radio and other telecom equipment. Sunlight resistant, CPR class Dca and UL listed. Indoor and outdoor use.
Flexible and easy to prepare for connection to simplify installation and reduce cost on site. Traditional braided Cu shield. UL listed. Halogen free, flame retardant and shielded cable with three (3) conductors for power supply to radio and other telecom equipment. Sunlight resistant, CPR class Dca and UL listed. Indoor and outdoor use.

Product Information

Further product data, downloads and certificates

Product Data
Downloads

Product Data

Material conductor: Copper
Conductor size: 2.5; 4
Material outer sheath: PE
Number of cores: 3
Core type: Multi core
Bending radius: 5 x OD
Screen: Yes
Sunlight resistant: Yes
Shielding material: Copper
Rated voltage (U0/U): 300/300 V
Max. operating Temperature: +90°C
Min. operating Temperature: -20°C
Application: Power cable
Standard / Norm: UL recognized
Material conductor: Copper
Conductor size: 2.5; 4
Material outer sheath: PE
Number of cores: 3
Core type: Multi core
Bending radius: 5 x OD
Screen: Yes
Sunlight resistant: Yes
Shielding material: Copper
Rated voltage (U0/U): 300/300 V
Max. operating Temperature: +90°C
Min. operating Temperature: -20°C
Application: Power cable
Standard / Norm: UL recognized
