Telecom energy cables

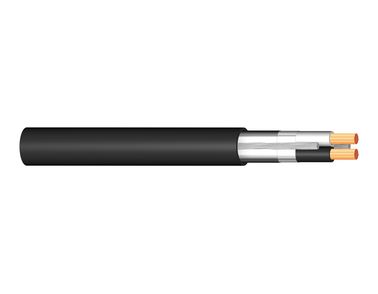

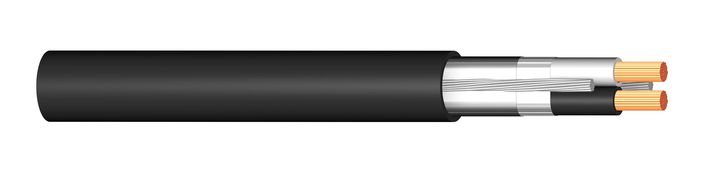

RQRQ Dual-core
Flexible and easy to prepare for connection to simplify installation and reduce cost on site. Cu shield and UL listed. Halogen free, flame retardant and Cu-shielded cable for power supply to radio and other telecom equipment. Sunlight resistant, CPR class Dca and UL listed. Indoor and outdoor use.
Flexible and easy to prepare for connection to simplify installation and reduce cost on site. Cu shield and UL listed. Halogen free, flame retardant and Cu-shielded cable for power supply to radio and other telecom equipment. Sunlight resistant, CPR class Dca and UL listed. Indoor and outdoor use.
Product Information
Further product data, downloads and certificates
Product Information
Downloads
Product Information
Material conductor: Copper
Conductor size: 2.5; 4; 6; 10; 16; 25; 35
Material outer sheath: PE
Number of cores: 2
Core type: Multi core
Bending radius: 5 x OD
Sunlight resistant: Yes
Shielding material: Copper
Rated voltage (U0/U): 600/600 V
Max. operating Temperature: +90°C
Min. operating Temperature: -20°C
CPR fire class: Dca
Application: Power cable
Standard / Norm: UL listed
Halogen free: Yes
Downloads
- Data Sheets
- DOPs
