Telecom energy cables

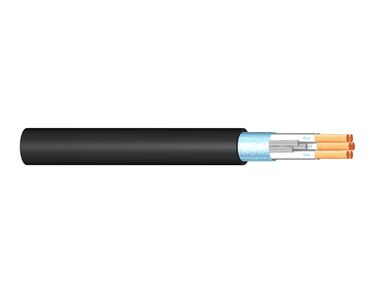

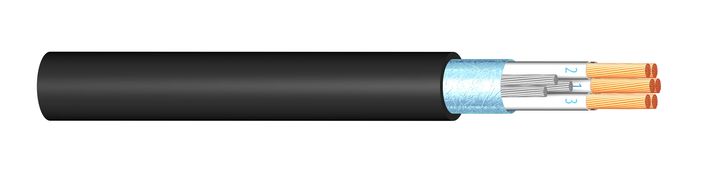

RQRQ Multi-core (6 cores)

Flexible multi-power cable minimizes number of cables to simplify installation and reduce cost. Halogen free, flame retardant and shielded cable with six (6) or twelve (12) conductors to power supply several radio units and other telecom equipment. Sunlight resistant, CPR class Dca and UL listed. Indoor and outdoor use.

Flexible multi-power cable minimizes number of cables to simplify installation and reduce cost. Halogen free, flame retardant and shielded cable with six (6) or twelve (12) conductors to power supply several radio units and other telecom equipment. Sunlight resistant, CPR class Dca and UL listed. Indoor and outdoor use.

Product Information

Further product data, downloads and certificates

Product Data
Downloads

Product Data

Material conductor: Copper
Conductor size: 6; 10; 16; 25
Material outer sheath: PE
Number of cores: 6
Core type: Multi core
Bending radius: 6 x OD
Screen: Yes
Sunlight resistant: Yes
Shielding material: Copper
Rated voltage (U0/U): 600/600 V
Max. operating Temperature: +90°C
Min. operating Temperature: -20°C
Application: Power cable
Standard / Norm: UL listed
Material conductor: Copper
Conductor size: 6; 10; 16; 25
Material outer sheath: PE
Number of cores: 6
Core type: Multi core
Bending radius: 6 x OD
Screen: Yes
Sunlight resistant: Yes
Shielding material: Copper
Rated voltage (U0/U): 600/600 V
Max. operating Temperature: +90°C
Min. operating Temperature: -20°C
Application: Power cable
Standard / Norm: UL listed

Downloads

RQRQ Multi-​core (12 cores), RQRQ Multi-​core (6 cores)

RQRQ Multi-​core (12 cores), RQRQ Multi-​core (6 cores)
