GIS / Transformer

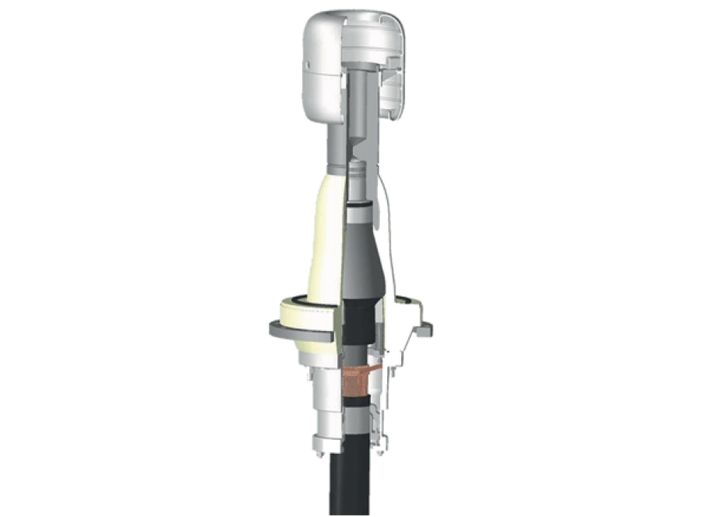

KTEV 72.5 – 550 kV

Dry type transformer termination
Dry type transformer termination

Product Information

Further product data, downloads and certificates

Product Information
Downloads

Product Information

Max. cross section: 3200 mm²
Core insulations: 35.5 - 140 mm
Termination length: Dry: 310mm, Fluid: 583mm Size 1, Dry: 470mm, Fluid: 757mm Size 4+6, Dry: 620mm, Fluid: 960mm Size 6+9, Dry: 960mm, Fluid: 1400mm Size 9
Max. outer sheath Ø: 185 mm
Max. weight: Dry: 178 kg, Fluid: 193 kg
Max. outer sheath: 185 mm
Operating voltage Ur: 72, 123, 145, 170, 245, 300, 420, 550 kV
Application: Switchgear Termination
DIN EN 50299 norms: IEC 60840, IEC 62067, IEC 62271-209, EN 50299
IEC standard 62271-209: Dry, Fluid
Optional kits: Optical Fiber Connection Set, Partial Discharge Sensor, PD measuring kit, IEC adapter, Blind plug (BST 72-245), Testing plate, Current testing device, Current testing device, Termination clamp, Protecting housing for XEV
Max. cross section: 3200 mm²
Core insulations: 35.5 - 140 mm
Termination length: Dry: 310mm, Fluid: 583mm Size 1, Dry: 470mm, Fluid: 757mm Size 4+6, Dry: 620mm, Fluid: 960mm Size 6+9, Dry: 960mm, Fluid: 1400mm Size 9
Max. outer sheath Ø: 185 mm
Max. weight: Dry: 178 kg, Fluid: 193 kg
Max. outer sheath: 185 mm
Operating voltage Ur: 72, 123, 145, 170, 245, 300, 420, 550 kV
Application: Switchgear Termination
DIN EN 50299 norms: IEC 60840, IEC 62067, IEC 62271-209, EN 50299
IEC standard 62271-209: Dry, Fluid
Optional kits: Optical Fiber Connection Set, Partial Discharge Sensor, PD measuring kit, IEC adapter, Blind plug (BST 72-245), Testing plate, Current testing device, Current testing device, Termination clamp, Protecting housing for XEV
