GIS / Transformer

SEV 123-420 kV

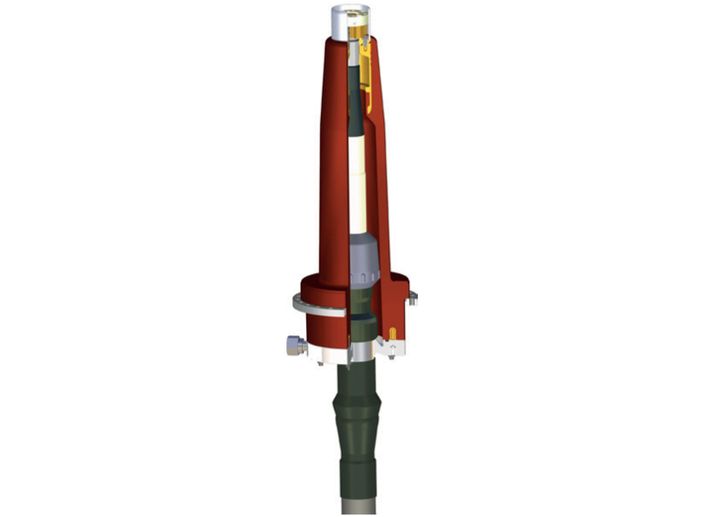

Fluid-filled GIS/transformer termination
Fluid-filled GIS/transformer termination

Product Information

Further product data, downloads and certificates

Product Information
Downloads

Product Information

Max. cross section: 2500 mm²
Core insulations: 56 - 124 mm
Termination length: Fluid: 757mm, Fluid: 960mm, Fluid: 1400mm
Max. outer sheath Ø: 165 mm
Max. weight: 530 kg
Max. outer sheath: 165 mm
Operating voltage Ur: 123, 145, 170, 245, 300, 420 kV
Application: Switchgear Termination
DIN EN 50299 norms: IEC 60840, IEC 62067, IEC 62271-209
IEC standard 62271-209: Fluid
Optional kits: Oil expansion vessel
Max. cross section: 2500 mm²
Core insulations: 56 - 124 mm
Termination length: Fluid: 757mm, Fluid: 960mm, Fluid: 1400mm
Max. outer sheath Ø: 165 mm
Max. weight: 530 kg
Max. outer sheath: 165 mm
Operating voltage Ur: 123, 145, 170, 245, 300, 420 kV
Application: Switchgear Termination
DIN EN 50299 norms: IEC 60840, IEC 62067, IEC 62271-209
IEC standard 62271-209: Fluid
Optional kits: Oil expansion vessel

Downloads

SEV/TEV 123 -​ 420 kV
