XLPE Cable Accessories

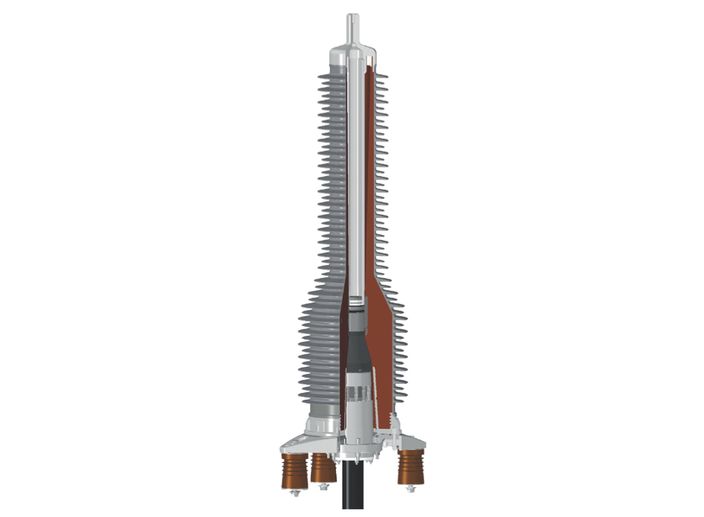

KFEV 123 - 300 kV

Dry plug-in outdoor termination for XLPE- and EPR-insulated cables wit AI or Cu conductor
Dry plug-in outdoor termination for XLPE- and EPR-insulated cables wit AI or Cu conductor

Product Information

Further product data, downloads and certificates

Product Information
Downloads

Product Information

Max. cross section: 2500 mm²
Core insulations: 47 - 100 mm
Termination length: 2861 mm
Max. outer sheath Ø: 138 mm
Max. weight: 384 kg
Max. outer sheath: 138 mm
Operating voltage Ur: 123, 145, 300 kV
Creepage path: 8755 mm
Product type: Composite Insulator
Application: Outdoor Termination
DIN EN 50299 norms: IEC 60840, IEC 62067
IEC standard 62271-209: Dry
Optional kits: Optical Fiber connection set, Partial Discharge sensor
Max. cross section: 2500 mm²
Core insulations: 47 - 100 mm
Termination length: 2861 mm
Max. outer sheath Ø: 138 mm
Max. weight: 384 kg
Max. outer sheath: 138 mm
Operating voltage Ur: 123, 145, 300 kV
Creepage path: 8755 mm
Product type: Composite Insulator
Application: Outdoor Termination
DIN EN 50299 norms: IEC 60840, IEC 62067
IEC standard 62271-209: Dry
Optional kits: Optical Fiber connection set, Partial Discharge sensor

Downloads

KFEV 123 -​ 300 kV
