Transition Joints

USM 170-OX

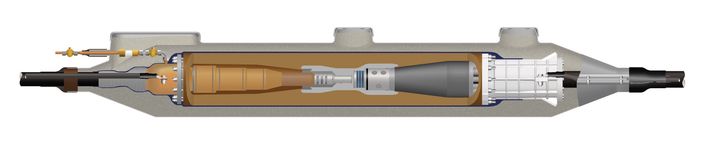

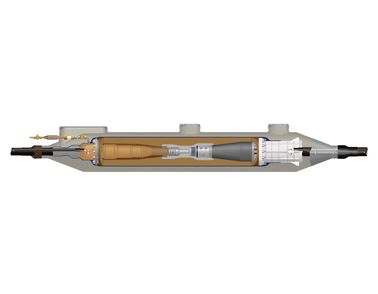

Transition joint for single-core LPOF – XLPE cable
Transition joint for single-core LPOF – XLPE cable

Product Information

Further product data, downloads and certificates

Product Information
Downloads

Product Information

Max. cross section: 2500 mm²
LPOF Max. cross section: 1200 mm²
Core insulations: 47 - 100 mm
Max. dimensions (Ø x L): 2700 x 450 (mm)
Core type: Single-Core
Operating voltage Ur: 123, 145, 170 kV
DIN EN 50299 norms: IEC 60840, CIGRE 415 06/2010
Optional kits: Optical Fiber connection set, Partial Discharge sensor
Max. cross section: 2500 mm²
LPOF Max. cross section: 1200 mm²
Core insulations: 47 - 100 mm
Max. dimensions (Ø x L): 2700 x 450 (mm)
Core type: Single-Core
Operating voltage Ur: 123, 145, 170 kV
DIN EN 50299 norms: IEC 60840, CIGRE 415 06/2010
Optional kits: Optical Fiber connection set, Partial Discharge sensor
