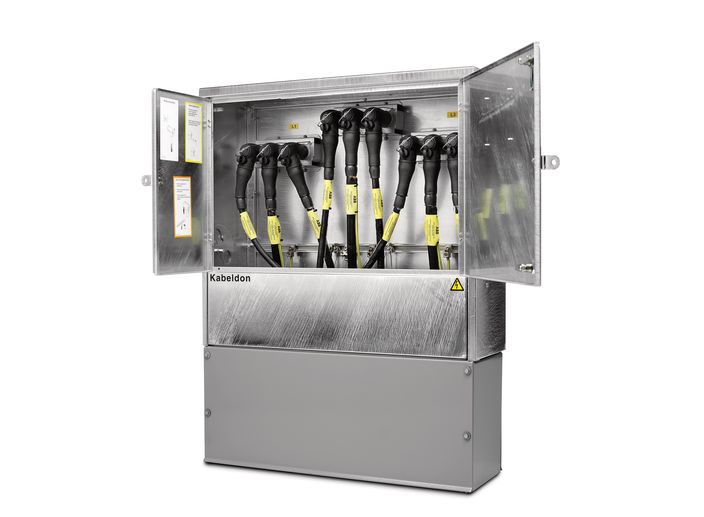

Cable branch cabinet

HDC-A 12-24 kV

Cabinet for jointing or branching XLPE and EPR insulated cables 12-24 kV with conductor cross section 25-95 mm² (250 A).
Cabinet for jointing or branching XLPE and EPR insulated cables 12-24 kV with conductor cross section 25-95 mm² (250 A).

Product Information

Further product data, downloads and certificates

Product Information
Downloads

Product Information

Max. cross section: 25 - 630 mm²
Core insulations: 12 kV: 13 - 22 mm, 24 kV: 17 - 25 mm
Max. weight: 117 kg
Core type: Single-Core, Three-Core
Operating voltage Ur: 12, 24 kV
Product type: Branch
DIN norms: IEC 60439-5 CENELEC, HD 629.1 S2
Max. cross section: 25 - 630 mm²
Core insulations: 12 kV: 13 - 22 mm, 24 kV: 17 - 25 mm
Max. weight: 117 kg
Core type: Single-Core, Three-Core
Operating voltage Ur: 12, 24 kV
Product type: Branch
DIN norms: IEC 60439-5 CENELEC, HD 629.1 S2

Downloads

HDC-​A 12–24 kV 250 A

HDC-​A 12–24 kV 250 A
