Joints

JC 42-HS

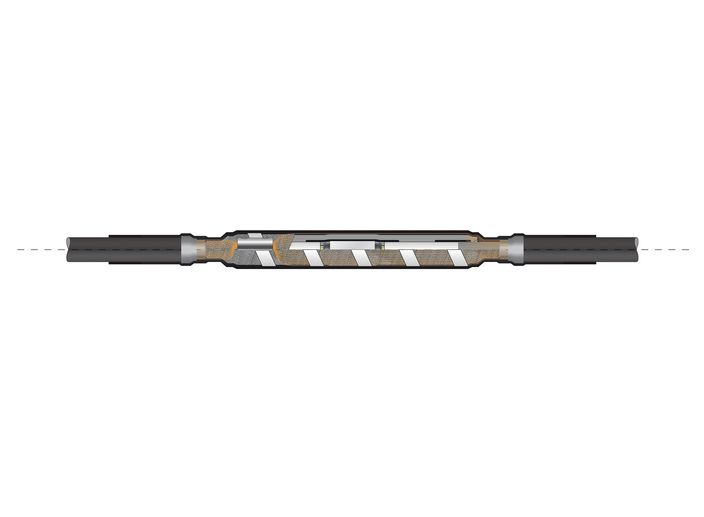

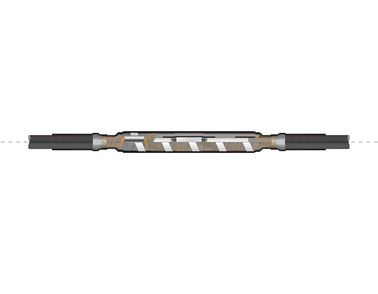

Cold shrink straight joint with joint body made of silicone rubber and an outer protective heat shrinking tube, for plastic insulated cables up to 42 kV.
Cold shrink straight joint with joint body made of silicone rubber and an outer protective heat shrinking tube, for plastic insulated cables up to 42 kV.

Product Information

Further product data, downloads and certificates

Product Information
Downloads

Product Information

Max. cross section: 1000 mm²
Core insulations: 24.8 - 66.6 mm
Max. outer sheath: 81 mm
Core type: Single-Core
Operating voltage Ur: 42 kV
Product type: Cold Shrink
Application: Straight Joint
DIN norms: CENELEC, HD 629.1 S1, SS 424 14 45 edition 1, VDE 0278, KEMA S8, IEEE 404 1993
Max. cross section: 1000 mm²
Core insulations: 24.8 - 66.6 mm
Max. outer sheath: 81 mm
Core type: Single-Core
Operating voltage Ur: 42 kV
Product type: Cold Shrink
Application: Straight Joint
DIN norms: CENELEC, HD 629.1 S1, SS 424 14 45 edition 1, VDE 0278, KEMA S8, IEEE 404 1993

Downloads

JC 42-​HS
