Terminations
APED 12-36 kV

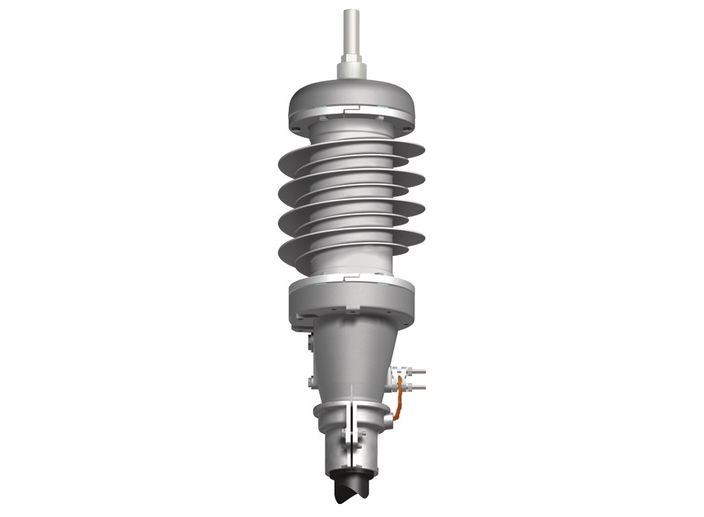

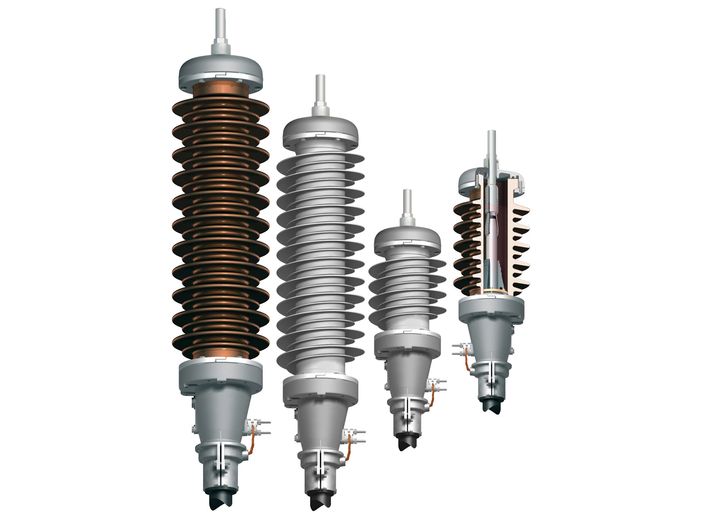

Oil-filled termination with polymeric insulator. Suitable for installations in which the termination is to be used as a selfsupporting type and for installations where there is a risk of very high site pollution severity. For XLPE- and EPR-insulated cable with Al or Cu conductor for 12–36 kV
Oil-filled termination with polymeric insulator. Suitable for installations in which the termination is to be used as a selfsupporting type and for installations where there is a risk of very high site pollution severity. For XLPE- and EPR-insulated cable with Al or Cu conductor for 12–36 kV
Product Information
Further product data, downloads and certificates
Product Information
Downloads
Product Information
Max. cross section: 1200 mm²
Core insulations: 25 - 66 mm
Termination length: 1025 mm
Core type: Single-Core
Operating voltage Ur: 12, 24, 36 kV
Creepage path: 1200 mm
Application: Outdoor Termination
DIN norms: IEEE 48, IEC 60840
Downloads
- Data Sheets
