Terminations

APSEA 12-36 kV

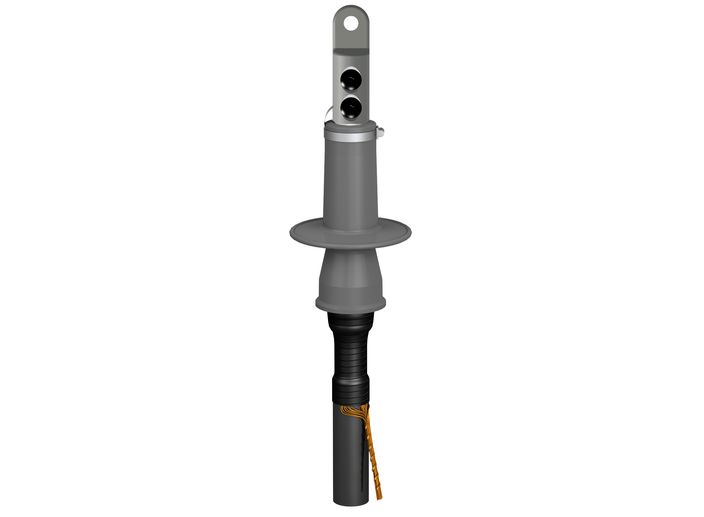

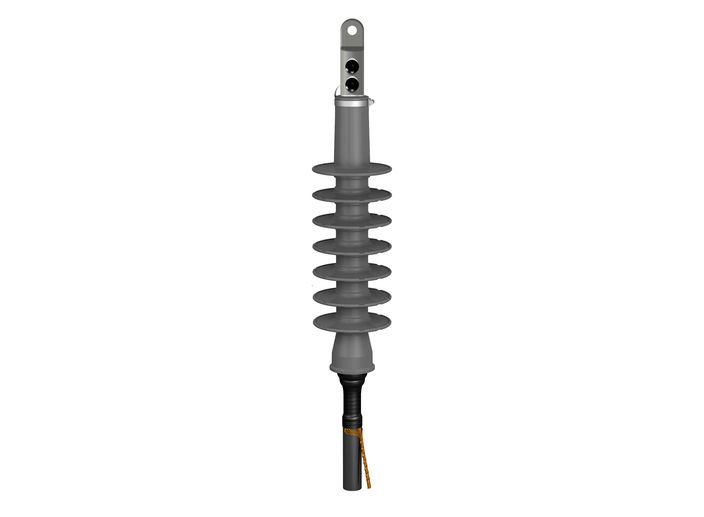

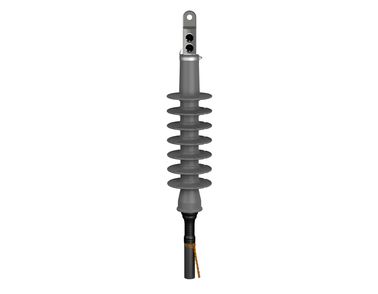

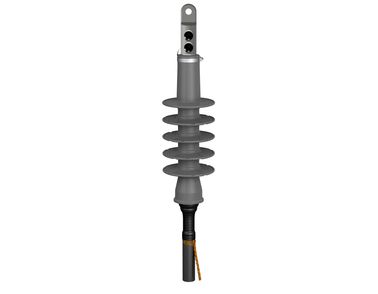

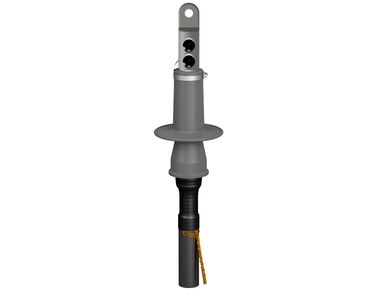

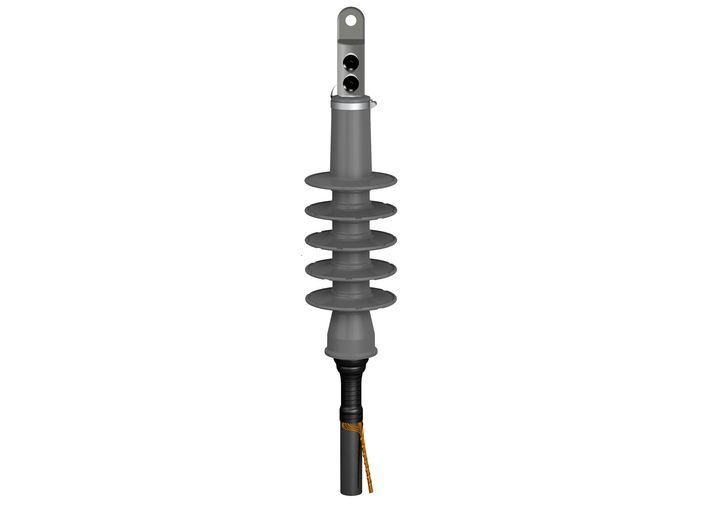

Cable termination made of EPDM with geometric field control. For XLPE- and EPR-insulated 1- or 3-core cable with Al or Cu conductors for 12–36 kV. For outdoor applications
Cable termination made of EPDM with geometric field control. For XLPE- and EPR-insulated 1- or 3-core cable with Al or Cu conductors for 12–36 kV. For outdoor applications

Product Information

Further product data, downloads and certificates

Product Information
Downloads

Product Information

Max. cross section: 1200 mm²
Core insulations: 25 - 66 mm
Termination length: 700 mm
Core type: Single-Core, Three-Core
Operating voltage Ur: 12, 24, 36 kV
Creepage path: 1100 mm
Application: Outdoor Termination
DIN norms: CENELEC, HD 629.1 S1, IEEE 48-1975
Max. cross section: 1200 mm²
Core insulations: 25 - 66 mm
Termination length: 700 mm
Core type: Single-Core, Three-Core
Operating voltage Ur: 12, 24, 36 kV
Creepage path: 1100 mm
Application: Outdoor Termination
DIN norms: CENELEC, HD 629.1 S1, IEEE 48-1975

Downloads

APSEA 12-​36 kV

APSEA 12-​36 kV
