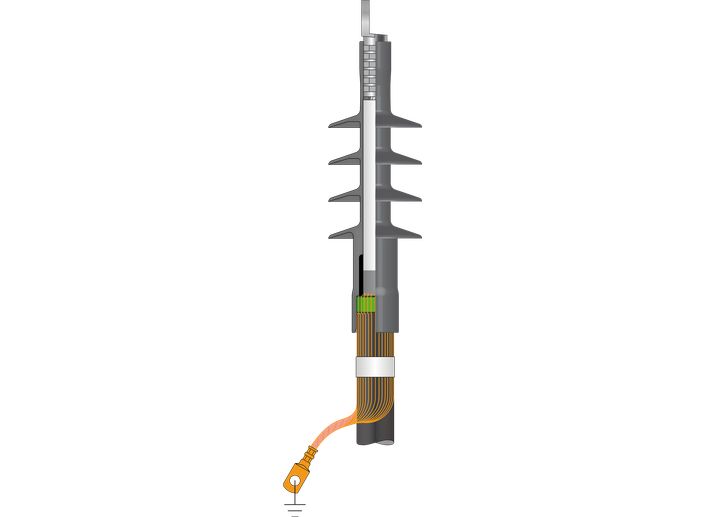

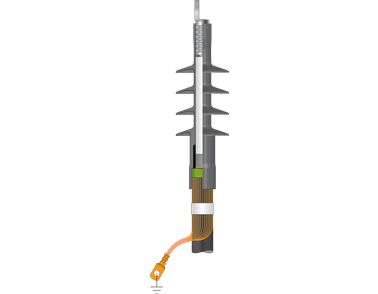

TO 24 Outdoor Termination for 24 kV Cables

Key Features:

Quick Installation: The TO 24 features a one-piece design made of high-quality silicone rubber, ensuring a fast and straightforward installation process.
Integrated Stress Control: Equipped with a capacitive stress control system, this termination guarantees optimal performance and longevity.
Versatile Connection Options: Compatible with various cable lug types, including screw type, hexagonal pressing, and deep indent pressing, to suit your specific needs.
Compact Design: Short body with optimized shed arrangement for long creepage distance.

Technical Excellence:

High Voltage Endurance: Withstands up to 24 kV, ensuring reliable performance under high voltage conditions.
Robust Construction: Designed to endure partial discharges, alternating and direct withstand voltages, and impulse withstand voltages.
Thermal and Dynamic Short-Circuit Resistance: Built to handle thermal short-circuits up to 18.5 kA and dynamic short-circuits up to 47 kA, ensuring safety and durability.
Salt Fog Test: Successfully passed the salt fog test at 16 kV for 1000 hours, proving its resilience in harsh environments.

Scope of Delivery:

Terminations: Made of durable silicone rubber.
Conductor Cable Lugs: Ensures secure and reliable connections.
Earthing Cable Lugs: Provides additional grounding.
Assembly Instructions: Step-by-step guide for easy installation.
Accessories: Includes all necessary components for a complete installation.

Applications:

Ideal for use in electrical installations requiring high reliability and performance, the TO 24 Outdoor Termination is perfect for outdoor environments. Whether you're upgrading existing systems or installing new ones, this termination offers the flexibility and durability you need.
