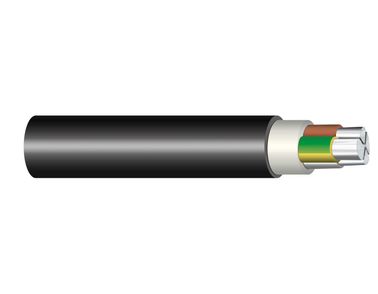

1 kV cables

1-AXKE

The cable is designed for fixed installation, indoors and outdoors, in the ground and in concrete.
The cable is designed for fixed installation, indoors and outdoors, in the ground and in concrete.

Product Information

Further product data, downloads and certificates

Product Data
Downloads

Product Data

Material conductor: Aluminium
Material insulation: XLPE
Material outer sheath: PE
Core type: Multi core
Screen: No
Test Voltage: 4 kV
Max. operating Temperature: +70°C
Min. operating Temperature: -35°C
Min. storage Temperature: -35°C
Max. short circuit Temperature: +140°C
Min. Temperature when laying: -5°C
Standard / Norm: TP-KK-145/03
Halogen free: Yes
Material conductor: Aluminium
Material insulation: XLPE
Material outer sheath: PE
Core type: Multi core
Screen: No
Test Voltage: 4 kV
Max. operating Temperature: +70°C
Min. operating Temperature: -35°C
Min. storage Temperature: -35°C
Max. short circuit Temperature: +140°C
Min. Temperature when laying: -5°C
Standard / Norm: TP-KK-145/03
Halogen free: Yes
