Telecom energy cables
RLL

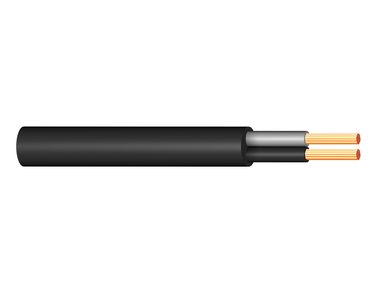

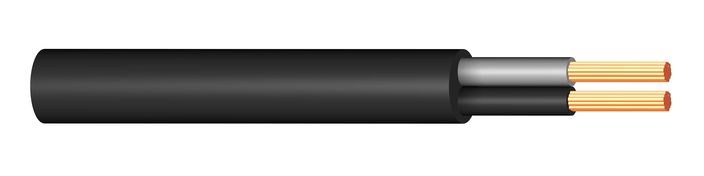

Flexible and easy to prepare for connection to simplify installation and reduce cost on site. Unshielded. UL listed. Halogen free, flame retardant and unshielded cable for power supply to radio and other telecom equipment. Sunlight resistant, CPR class Dca and UL listed. Indoor and outdoor use.
1/116
Flexible and easy to prepare for connection to simplify installation and reduce cost on site. Unshielded. UL listed. Halogen free, flame retardant and unshielded cable for power supply to radio and other telecom equipment. Sunlight resistant, CPR class Dca and UL listed. Indoor and outdoor use.
Product Information
Further product data, downloads and certificates
Product Information
Downloads
Product Information
Material conductor: CU
Conductor size: 14AWG (2.5); 12AWG (4)
Material outer sheath: PE
Number of cores: 2
Core type: Multi core
Bending radius: 4 x OD
Sunlight resistant: Yes
Rated voltage (U0/U): 300/300 V
Max. operating Temperature: +80°C
Min. operating Temperature: -20°C
CPR fire class: Dca
Application: Power cable
Standard / Norm: UL recognized
Halogen free: Yes
Cable Standard: LSZH
Insulation material: LSZH
Jacket Material: LSZH
