Martin Linge, Norway

The Martin Linge oil and gas field is located in the North Sea offshore Norway, close to the border to the UK continental shelf. The owner Equinor wanted to power the offshore activities from the onshore power grid instead of using onsite generators.

Key Facts

Client

Equinor

Total cable route length

163 km

Location of the project

The North Sea, Norway

Duration

2012 – 2019

Quantity of order

A 145 kV three-core XLPE HVAC submarine cable system with a 55 MW power rating including fber optic links plus a 17.5 kV infeld cable system including dynamic cable

Scope

  • Design and engineering of turnkey cable systems
  • Manufacturing of cable, fiber optic links and dynamic cable
  • Delivery ▪ Cable-laying and jointing
  • Testing and commissioning
HV Offshore Martin Linge project cable shipment
HV Offshore Martin Linge project cable sample

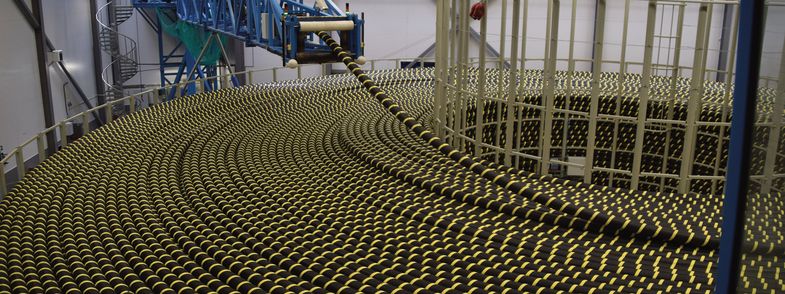

HV Offshore Martin Linge project cable loading

The project

The Martin Linge oil and gas feld needed an effcient power transmission link from shore.

The Martin Linge oil and gas feld is located in the North Sea offshore Norway, close to the border to the UK continental shelf. The owner Equinor wanted to power the offshore activities from the onshore power grid instead of using onsite generators. This would reduce the environmental impact by saving about 200,000 tons of CO2 (carbon dioxide) annually.

Other advantages that Equinor wanted to obtain with a power-from-shore solution were reduced risk of fre and reduced need for maintenance. They wanted lower weight and less noise and vibration on the platform. The project was to improve overall working conditions.

The project included additional challenges besides the very tough environment of the North Sea. A large number of interfaces within the project required a well-organized and effcient management from the various involved specialists. There was also a high focus on health and safety which required a careful prevention work, before and during project execution.

NKT has extensive experience in power-fromshore solutions for the offshore oil and gas industry. We were awarded the contract to connect the feld to the Norwegian power grid.

Reference Map Martin Linge

The solution

NKT provided a record-breaking HVAC (high-voltage alternating current) cable system.

We designed, manufactured and installed the entire impressive 145 kV three-core XLPE HVAC submarine cable system. It is 163 kilometres long and plays a key role in making the oil and gas feld more carbon-effcient. It has low electrical losses, excellent tensile strength to withstand the harsh conditions of the North Sea and includes three fber optic links.

We also supplied a 3.5-kilometre 17.5 kV infeld cable including 500 metres of dynamic cable that connects the platform to a FSO (foating storage and offoading vessel). The dynamic cable is designed to withstand the motion of the FSO caused by wind, waves and current.

The main cable system was produced at NKT’s state-of-the art production facilities in Karlskrona, Sweden. It goes out from Kollsnes, is connected to the Martin Linge platform and was delivered in two sub-lengths, connected with a rigid feld joint and installed at water depths reaching 358 meters. The infeld cable parts were jointed and tested at the factory before being laid on the seabed between the platform and the FSO.

NKT’s capacity, competence and pioneering work will surely continue to break new ground. We delivered a world unique dynamic cable – as well as a world record length AC cable system.

“NKT has the expertise to prepare and install cable systems in demanding environments.”

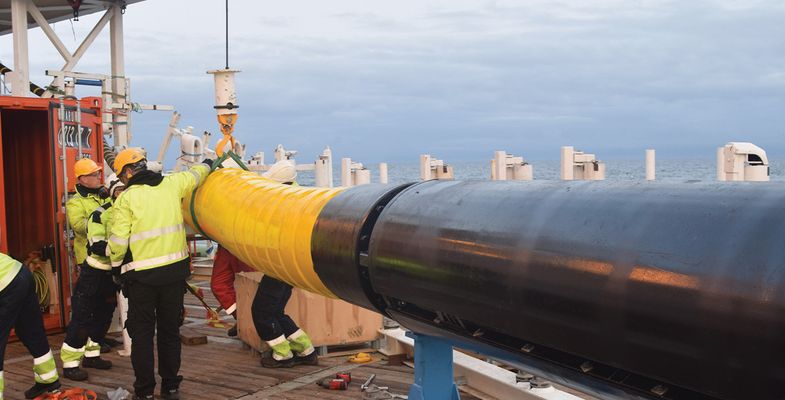

Dynamic high voltage cable installation offshore off the coast in Norway
