CB 72
CB 72 Branch Connector for 72.5 kV Cables
Key Features:
- Quick Installation: The CB 72 features a one-piece design made of high-quality silicone rubber, ensuring a fast and straightforward installation process.
- Integrated Stress Control: Equipped with a pre-moulded geometric field control element, independent of system frequency and harmonic content, this connector guarantees optimal performance and longevity.
- Versatile Connection Options: Compatible with various cable lug types, including screw type and crimp type, to suit your specific needs.
- Comprehensive Design: Includes a stress cone element, cable lug, covering pin, insulating plug, and covering cap for complete installation.
Technical Excellence:
- High Voltage Endurance: Withstands up to 72.5 kV, ensuring reliable performance under high voltage conditions.
- Robust Construction: Designed to endure partial discharges, alternating withstand voltages, and impulse withstand voltages.
- Standards Compliance: Meets EN 50673 and IEC 60840 standards, ensuring safety and environmental responsibility.
Scope of Delivery:
- Connector Body: Made of durable silicone rubber.
- Stress Cone Element: Ensures optimal stress distribution.
- Cable Lug: Provides secure and reliable connections.
- Covering Pin and Insulating Plug: Offers additional protection and insulation.
- Covering Cap: Completes the installation.
- Assembly Instructions: Step-by-step guide for easy installation.
Applications:
Ideal for use in electrical installations requiring high reliability and performance, the CB 72 Branch Connector is perfect for connecting GIS and transformers. Suitable for both indoor and outdoor environments, this connector is adaptable to XLPE- and EPR-insulated cables with Al or Cu conductors.
1/38
CB 72 Branch Connector for 72.5 kV Cables
Key Features:
- Quick Installation: The CB 72 features a one-piece design made of high-quality silicone rubber, ensuring a fast and straightforward installation process.
- Integrated Stress Control: Equipped with a pre-moulded geometric field control element, independent of system frequency and harmonic content, this connector guarantees optimal performance and longevity.
- Versatile Connection Options: Compatible with various cable lug types, including screw type and crimp type, to suit your specific needs.
- Comprehensive Design: Includes a stress cone element, cable lug, covering pin, insulating plug, and covering cap for complete installation.
Technical Excellence:
- High Voltage Endurance: Withstands up to 72.5 kV, ensuring reliable performance under high voltage conditions.
- Robust Construction: Designed to endure partial discharges, alternating withstand voltages, and impulse withstand voltages.
- Standards Compliance: Meets EN 50673 and IEC 60840 standards, ensuring safety and environmental responsibility.
Scope of Delivery:
- Connector Body: Made of durable silicone rubber.
- Stress Cone Element: Ensures optimal stress distribution.
- Cable Lug: Provides secure and reliable connections.
- Covering Pin and Insulating Plug: Offers additional protection and insulation.
- Covering Cap: Completes the installation.
- Assembly Instructions: Step-by-step guide for easy installation.
Applications:
Ideal for use in electrical installations requiring high reliability and performance, the CB 72 Branch Connector is perfect for connecting GIS and transformers. Suitable for both indoor and outdoor environments, this connector is adaptable to XLPE- and EPR-insulated cables with Al or Cu conductors.
Product Information
Further product data, downloads and certificates
Product Information
Downloads
Product Information
Max. cross section: 1200 mm²
Core insulations: 32 - 74 mm

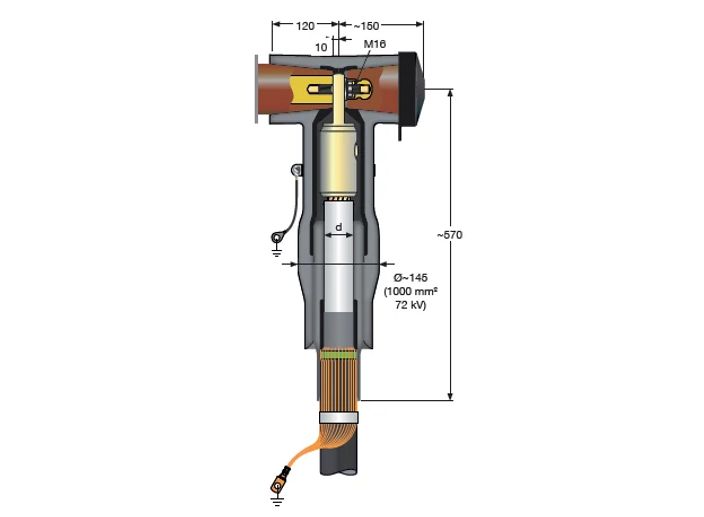

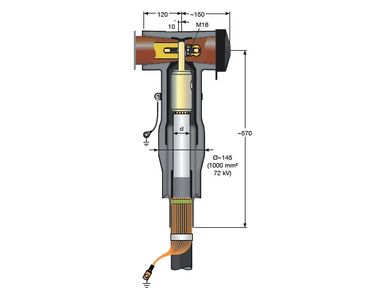

Max. dimensions (Ø x L): 145 x 270 x 610 (mm)
Max. weight: 14 kg
Product type: Branch
DIN EN 50299 norms: EN 50673, IEC 60840
Optional kits: Usable for on- and offshore application, Integrated capacitive measuring point
