PILC

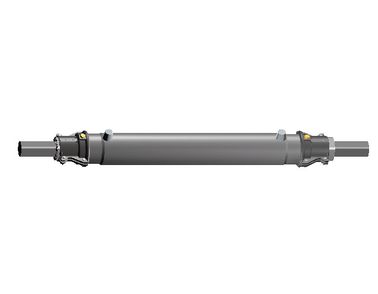

SMTXD 24-36 kV

Transition cable joint for jointing a paper-insulated 3-core lead sheathed cable with a XLPE insulated 1- or 3-core cable with Al or Cu conductors 24-36 kV
Transition cable joint for jointing a paper-insulated 3-core lead sheathed cable with a XLPE insulated 1- or 3-core cable with Al or Cu conductors 24-36 kV

Product Information

Further product data, downloads and certificates

Product Information
Downloads

Product Information

XLPE Max. cross section: 24 kV: 300 mm², 36 kV: 240 mm²
PILC Max. cross section: 300 mm²
PILC Core insulations: 20 - 85 mm
Max. outer sheath: 150 mm
Max. outer sheath: 150 mm
Max. weight: 76 kg
Max. outer sheath: 150 mm
Core type: Single-Core
Operating voltage Ur: 24, 36 kV
Product type: Plastic coated steel tube
Application: Transition
DIN norms: SEN 24 14 34, VDE 0278
Additional accessories: Spring loaded gasket FP
XLPE Max. cross section: 24 kV: 300 mm², 36 kV: 240 mm²
PILC Max. cross section: 300 mm²
PILC Core insulations: 20 - 85 mm
Max. outer sheath: 150 mm
Max. outer sheath: 150 mm
Max. weight: 76 kg
Max. outer sheath: 150 mm
Core type: Single-Core
Operating voltage Ur: 24, 36 kV
Product type: Plastic coated steel tube
Application: Transition
DIN norms: SEN 24 14 34, VDE 0278
Additional accessories: Spring loaded gasket FP

Downloads

SMTXD 24-​36 kV
