PILC

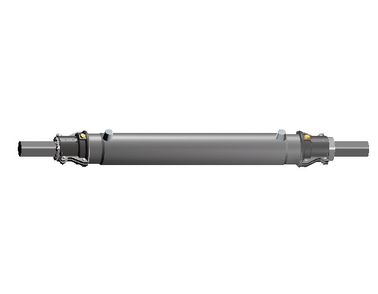

SMTXB 12 kV

Transition cable joint for jointing a paper insulated 3-core lead sheathed cable with a XLPE insulated 1- or 3-core cable with Al or Cu conductors 12 kV
Transition cable joint for jointing a paper insulated 3-core lead sheathed cable with a XLPE insulated 1- or 3-core cable with Al or Cu conductors 12 kV

Product Information

Further product data, downloads and certificates

Product Information
Downloads

Product Information

XLPE Max. cross section: 10 - 240 mm²
PILC Max. cross section: 300 mm²
XLPE Core insulations: 15 - 32 mm
PILC Core insulations: 18 - 85 mm
Termination length: 1135 - 1935 mm
Max. outer sheath: 100 mm
Max. outer sheath Ø: 100 mm
Max. weight: 57 kg
Max. outer sheath: 100 mm
Core type: Three-Core
Operating voltage Ur: 12 kV
Product type: Plastic coated steel tube
Application: Transition
DIN norms: SEN 24 14 34, VDE 0278
Additional accessories: Spring loaded gasket FPA
XLPE Max. cross section: 10 - 240 mm²
PILC Max. cross section: 300 mm²
XLPE Core insulations: 15 - 32 mm
PILC Core insulations: 18 - 85 mm
Termination length: 1135 - 1935 mm
Max. outer sheath: 100 mm
Max. outer sheath Ø: 100 mm
Max. weight: 57 kg
Max. outer sheath: 100 mm
Core type: Three-Core
Operating voltage Ur: 12 kV
Product type: Plastic coated steel tube
Application: Transition
DIN norms: SEN 24 14 34, VDE 0278
Additional accessories: Spring loaded gasket FPA
